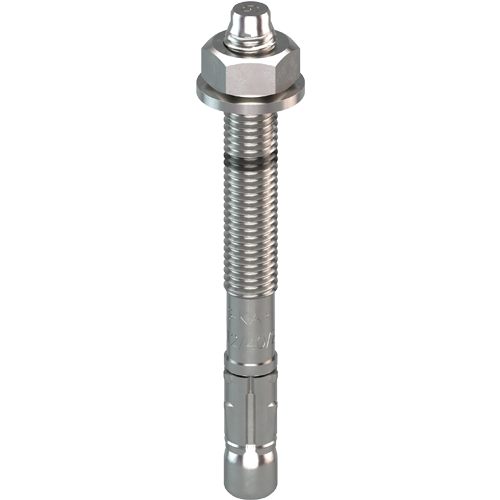

EJOT® BA-V Plus

Specification

Applications
- For embedment in cracked and non-cracked concrete ≥ C20/25
- Also suitable for natural stone
- Dry indoor areas
- For embedment of medium heavy to heavy fixings such as pillars, metal structures and wooden structures
- For pre-, push-through and distance installations
- Seismic approval category C2 (M8-M16)
Properties
- Galvanized zinc-plated steel
- Approval for concrete, Option 1
- Fire restistance classes F30, F60, F90, F120
Note: Characteristic values apply to the compression strength of C20/25 concrete. Design load of an anchor for centric tension in cracked concrete.
Benefits
- Completely new design
- M10 and M12 with 2 different anchorage depths
  M10: 40 mm and 60 mm
  M12: 50 mm and 70 mm
- Colored setting depth marking on the thread
- Anchor length letter code marked on the bolt head
- Installation also in thinner concrete than today with M8 and M10
  M8: 80 mm vs. 100 mm
  M10: 100 mm vs. 120 mm
- 30 – 50% fewer turns for the assembly torque

English

French

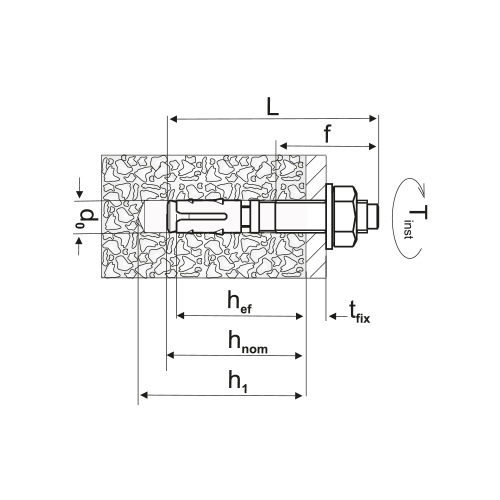

Orderidentifier	Article Number	ø mm	Length mm	Clamping thickness t_fix≤ mm	Hole depth h₁ ≥ mm	Material	Unit
BA-V Plus 12/40/20	9650001342	12.0	118.0	40.0	70.0	Carbon Steel
Specifications ø 12.0 Length 118.0 Clamping thickness t_fix≤ 40.0 Hole depth h₁ ≥ 70.0 Material Carbon Steel Orderidentifier BA-V Plus 12/40/20 Unit
