EJOT® drillX

Specification

  • Applications

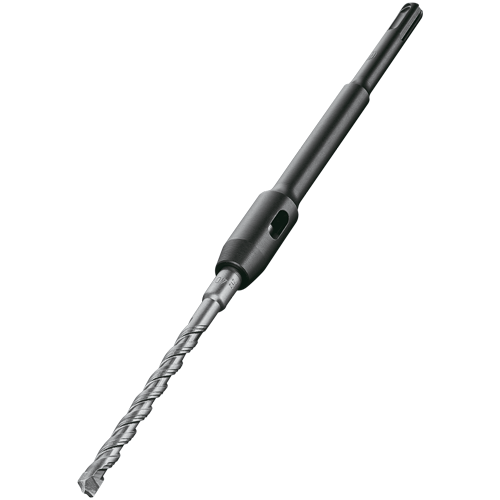

    Specifically designed drill extension for use with short hard metal hammer drills (EJOT drill) with cone adaptor

    • To drill extra deep holes
    • To take up EJOT hard metal drills and EJOT stepdrills
  • Properties

    • Decreased drilling costs when using anchors longer than 155 mm
    • Improved transfer of the hammer impulse from the hammer drill over the drill extension
    • Easier installation of additional layers of External Thermal Insulation Composite Systems
    • The geometry of the drill extension expands the old render layer which facilitates anchor installation
  • Technical specifications

    Characteristic values:

    • With SDS-plus adaptor
    • Effective length:

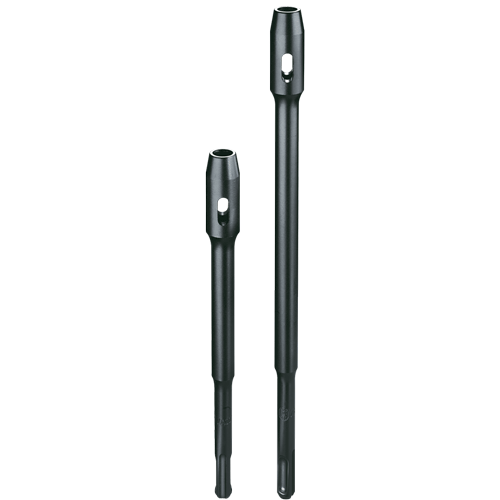

      EJOT drillX 200: 150 mm
      EJOT drillX 270: 220 mm

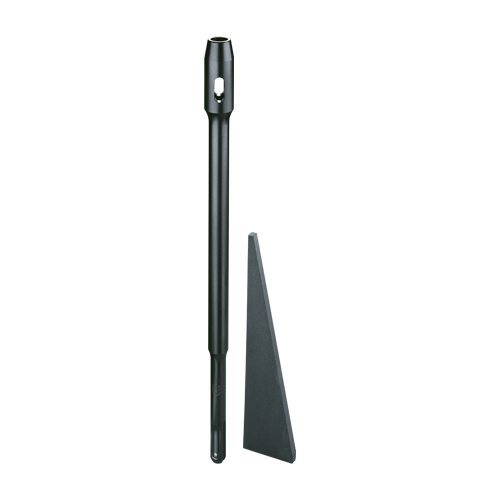

    • cone expeller included in delivery

ETICS products are only available from system suppliers

Filter

Selected filters

    Orderidentifier Article Number Unit
    EJOT drillX 200 W-9151950001 100

    Specifications

    Orderidentifier
    EJOT drillX 200
    Unit
    100
    EJOT drillX 270 W-9151950002 100

    Specifications

    Orderidentifier
    EJOT drillX 270
    Unit
    100
