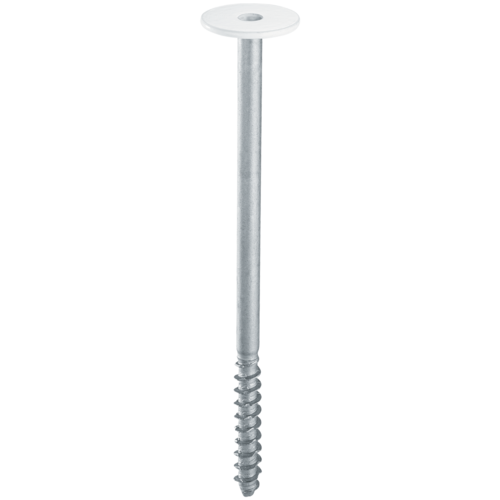

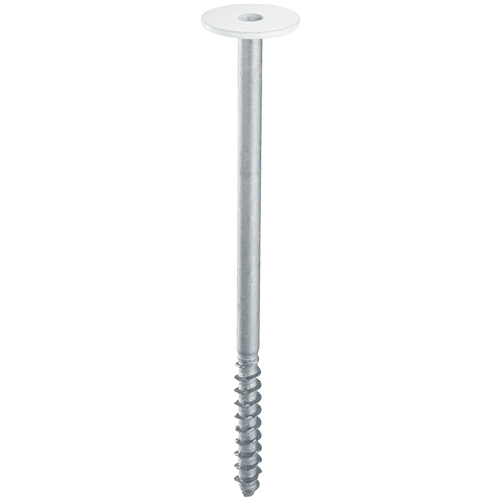

EJOT® DDS-Z

Specification

  • Applications

    • For a secure fastening of ceiling and acoustic boards
    • With German DIBt approval
    • Recommended substrate: Concrete
  • Properties

    • For installation in cracked and non-cracked concrete
    • Steel screw with duplex coating and self-tapping thread for reliable fastening
    • Corrosion resistance classification C1-C3
    • Easy installation: drill, fasten, done
    • Minimal embedment depth
    • Standard screw head colour: white
    • Special service: coloured lacquering of the fastener heads
    • Technical specifications

      • Head diameter: 24 mm
      • Drill hole diameter: 6 mm
      • Drill hole depth h1 ≥: 35mm
      • Embedment depth hef ≥: 25 mm
      • Screw drive: TX30
      • Recommended substrate: Concrete
      • Building material class: A2
      • Corrosion resistance classification: C1 - C3
      • DIBt approval: Z-21.8-1980


      Characteristic load:

      • Cracked and uncracked normal weight concrete C 20/25 - C 50/60 NRK<7sub>: 0.9 kN


      *For further technical specification, please refer to the relevant technical data sheet.

ETICS products are only available from system suppliers

Filter

Selected filters

    Orderidentifier Article Number Construction way Screw-in-/hammer-inanchor Head Colour Embedment depth hef Drill hole depth Unit
    EJOT DDS-Z 050 5929050682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 050
    Unit
    100
    EJOT DDS-Z 075 5929075682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 075
    Unit
    100
    EJOT DDS-Z 085 5929085682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 085
    Unit
    100
    EJOT DDS-Z 100 5929100682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 100
    Unit
    100
    EJOT DDS-Z 110 5929110682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 110
    Unit
    100
    EJOT DDS-Z 125 5929125682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 125
    Unit
    100
    EJOT DDS-Z 135 5929135682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 135
    Unit
    100
    EJOT DDS-Z 150 5929150682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 150
    Unit
    100
    EJOT DDS-Z 165 5929165682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 165
    Unit
    100
    EJOT DDS-Z 175 5929175682 surface fixed installation only screw-in-anchor 25.0 35.0 100

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL9002
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-Z 175
    Unit
    100
