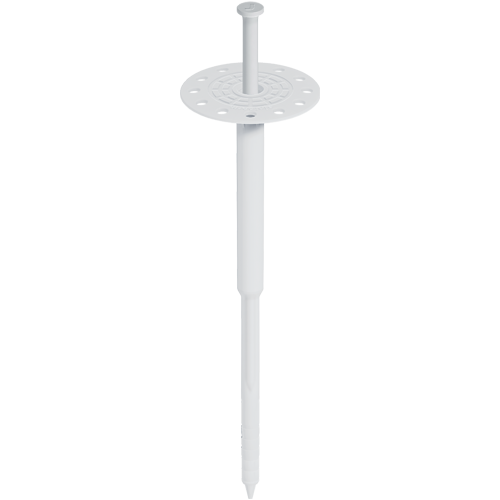

EJOT® H1 eco

Specification

  • Applications

    Universal hammer-in anchor

    • Approved for all material classes (A, B, C, D, E)
    • For all insulation boards
    • For surface fixed installation
    • With European Technical Assessment (ETA)
  • Properties

    • Approved for concrete, solid and perforated masonry
    • Solid steel nail (break-proof)
    • Low profile washer face
    • Plastic injection element to reduce thermal transmission (0,001 W/K)
    • Can be used with an additional spreader washer
    • KShort embedment depth, reduced drilling
    • High loads for your security
    • Economic anchor usage
    • Premounted nail for quick installation
  • Technical specifications

    • Anchor diameter: 8 mm
    • Washer diameter: 60 mm
    • Drill hole depth h1 ≥: 35 mm
    • Embedment depth hef≥: 25 mm
    • Point thermal transmission χ: 0.001 W/K
    • Use categories acc. to ETA: A, B, C
    • European Technical Assessment: ETA-11/0192
      • Normal weight concrete C 12/15 acc. to EN 206-1: 0.9 kN
      • Normal weight concrete C 16/20 - C 50/60 acc. to EN 206-1: 0.9 kN
      • Clay bricks (Mz) acc. to DIN 105: 0.9 kN
      • Solid lime sandstone (KS) acc. to DIN EN 106: 0.9 kN
      • Vertically perforated clay brick (Hlz) acc. to DIN 105, bulk density ≥ 1.2 kg/dm3: 0.75 kN
      • Vertically perforated clay brick (Hlz) acc. to DIN 105, bulk density ≥ 0.9 kg/dm3: 0.6 kN
      • Sand-lime perforated (KSL) acc. to DIN EN 106: 0.9 kN

    •

      Characteristic loads:

      Building material class A:

      Building material class B:

      Building material class C:

      For calculation of design loads the national safety factors have to be included (e.g. Germany: 3). Please observe the approval.
