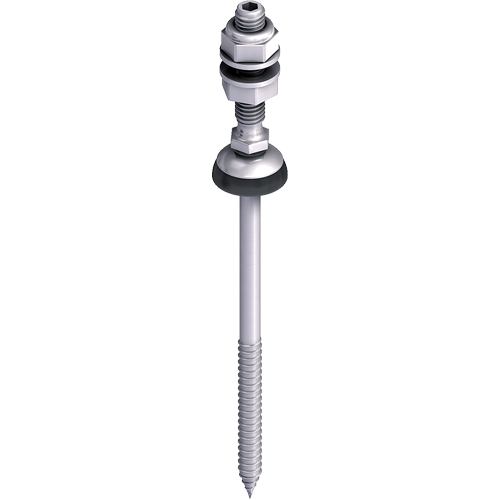

EJOT® Solar Fastener set JA3-SB-8.0 xL with FZD fibre cement seal

Specification

  • Applications

    • For fastening elevated solar and photovoltaic installations to timber substructures
    • Suitable for corrugated fibre cement profile sheets
  • Properties

    • A2 stainless steel
    • In set with FZD fibre cement seal

    Benefits

    • Quick retrofitting on existing installations
    • Extremely safe fastening with direct load transfer into the substructure
    • No additional holes in the roofing membrane
    • Consistent installation depth
    • Use of proven sealing systems
    • Durable seal due to solid attachment point
    • Minimum installation and tool requirements
    • Project-related initial sizing possible
  • Technical specifications

    • Screw diameter: 8.0 mm
    • A/F5 hexagon drive

    Notice
    The solar fastener components are tailored to your project. Further versions upon request

Order information: Also available with screw nuts with locking serrations DIN EN ISO 1661. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089

Filter

Selected filters

    Orderidentifier Article Number ø mm Thread Length mm Unit
    Set JA3-SB-8.0x80/70 E16 3150891907 8.0 M10x70 80.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    80.0
    Height trapezoidal mm
    29.0
    Orderidentifier
    Set JA3-SB-8.0x80/70 E16
    Unit
    25
    Set JA3-SB-8.0x80/50 FZD 3150898905 8.0 M10x50 80.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    80.0
    Height trapezoidal mm
    Orderidentifier
    Set JA3-SB-8.0x80/50 FZD
    Unit
    25
    Set JA3-SB-8.0x80/70 FZD 3150898907 8.0 M10x70 80.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    80.0
    Height trapezoidal mm
    Orderidentifier
    Set JA3-SB-8.0x80/70 FZD
    Unit
    25
    Set JA3-SB-8.0x100/70 E16 3151091907 8.0 M10x70 100.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    100.0
    Height trapezoidal mm
    59.0
    Orderidentifier
    Set JA3-SB-8.0x100/70 E16
    Unit
    25
    Set JA3-SB-8.0x100/50 FZD 3151098905 8.0 M10x50 100.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    100.0
    Height trapezoidal mm
    Orderidentifier
    Set JA3-SB-8.0x100/50 FZD
    Unit
    25
    Set JA3-SB-8.0x100/70 FZD 3151098907 8.0 M10x70 100.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    100.0
    Height trapezoidal mm
    Orderidentifier
    Set JA3-SB-8.0x100/70 FZD
    Unit
    25
    Set JA3-SB-8.0x130/70 E16 3151391907 8.0 M10x70 130.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    130.0
    Height trapezoidal mm
    Orderidentifier
    Set JA3-SB-8.0x130/70 E16
    Unit
    25
    Set JA3-SB-8.0x130/50 FZD 3151398905 8.0 M10x50 130.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    130.0
    Height trapezoidal mm
    Orderidentifier
    Set JA3-SB-8.0x130/50 FZD
    Unit
    25
    Set JA3-SB-8.0x130/70 FZD 3151398907 8.0 M10x70 130.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    130.0
    Height trapezoidal mm
    Orderidentifier
    Set JA3-SB-8.0x130/70 FZD
    Unit
    25
    Set JA3-SB-8.0x150/70 E16 3151591907 8.0 M10x70 150.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    150.0
    Height trapezoidal mm
    Orderidentifier
    Set JA3-SB-8.0x150/70 E16
    Unit
    25
