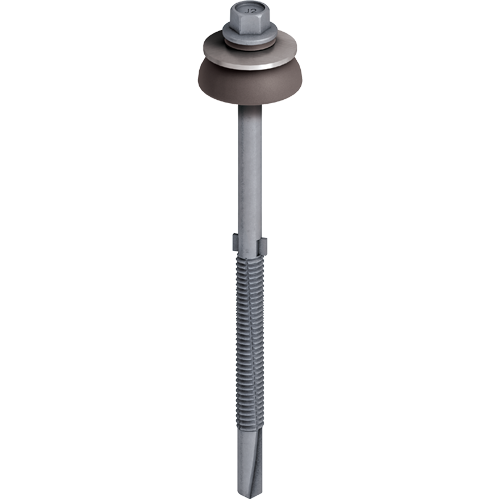

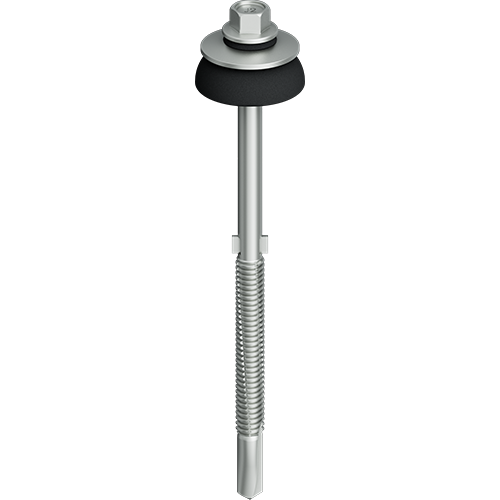

EJOT® self-drilling screw JT2-FZ-12-6.3 EJOGUARD

Specification

  • Applications

    • Fastening corrugated fibre cement sheet 177/51 to steel substructure 5–12 mm

    Note
    For the dimensioning and the use of fastening materials please note the manufacturer's instructions for use as well as the national approvals.

  • Properties

    • Case-hardened steel
    • High-grade coating to improve the corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
    • Pre-assembled FZD sealing washer
    • A2 stainless steel washer
    • Screw wings save additional drilling into the corrugated slabs
    • Reduced forcing tension
  • Technical specifications

    • Diameter: 6.3 mm
    • Drilling capacity tII: 12.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm
Orderidentifier Article Number ø mm Length mm Unit
JT2-FZ-12-6.3x115-FZD 3512375614 6.3 115.0 100

Specifications

ø
6.3
Length
115.0
Clamp thickness
60.0 - 85.0
Fastener material
Carbon Steel
Orderidentifier
JT2-FZ-12-6.3x115-FZD
Unit
100
