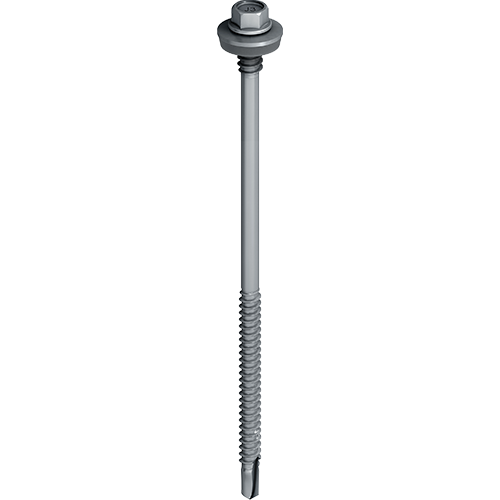

EJOT® Self-drilling screw JT3-D-6H-5.5/6.3

Specification

  • Applications

    • Fastening sandwich panels to 1.5 - 4.0 mm steel substructures
  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head
    • High thread
  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity t+ tII: 2.0 mm + 4.5 mm
    • Drive: Hexagon A/F8
    • Ø high thread: 6.3 mm
    • Installation rotation speed max. 1300 rpm

Informacija užsakymams: Galimi papildomi ilgiai.

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Ø Sealing Washer mm Length mm Clamp thickness mm Fastener material Unit
    JT3-D-6H-5.5/6.3x87-E19 3556066371 5.5 6.3 19 87.0 41.0 - 68.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    87.0
    Clamp thickness
    41.0 - 68.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-6H-5.5/6.3x87-E19
    Unit
    100
    JT3-D-6H-5.5/6.3x107-E19 3556166371 5.5 6.3 19 107.0 51.0 - 88.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    107.0
    Clamp thickness
    51.0 - 88.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-6H-5.5/6.3x107-E19
    Unit
    100
    JT3-D-6H-5.5/6.3x127-E19 3556266371 5.5 6.3 19 127.0 71.0 - 108.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    127.0
    Clamp thickness
    71.0 - 108.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-6H-5.5/6.3x127-E19
    Unit
    100
    JT3-D-6H-5.5/6.3x147-E19 3556366371 5.5 6.3 19 147.0 91.0 - 128.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    147.0
    Clamp thickness
    91.0 - 128.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-6H-5.5/6.3x147-E19
    Unit
    100
    JT3-D-6H-5.5/6.3x167-E19 3556766371 5.5 6.3 19 167.0 111.0 - 148.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    167.0
    Clamp thickness
    111.0 - 148.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-6H-5.5/6.3x167-E19
    Unit
    100
    JT3-D-6H-5.5/6.3x197-E19 3559766372 5.5 6.3 19 197.0 141.0 - 178.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    197.0
    Clamp thickness
    141.0 - 178.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-6H-5.5/6.3x197-E19
    Unit
    100
    JT3-D-6H-5.5/6.3x237-E19 3559666372 5.5 6.3 19 237.0 171.0 - 218.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    237.0
    Clamp thickness
    171.0 - 218.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-6H-5.5/6.3x237-E19
    Unit
    100
    JT3-D-6H-5.5/6.3x267-E19 3559966372 5.5 6.3 19 267.0 201.0 - 248.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    267.0
    Clamp thickness
    201.0 - 248.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-6H-5.5/6.3x267-E19
    Unit
    100
