EJOT® frame anchor type RA-U

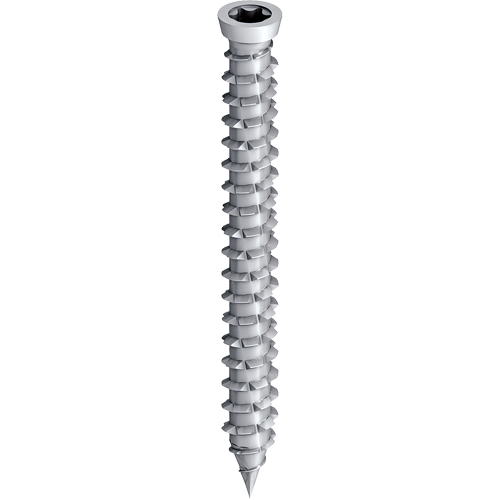

Rahmenanker Typ RA-U

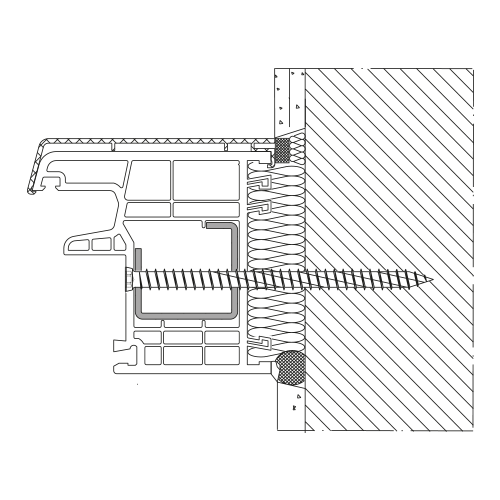

Anwendung-Rahmenanker_RA-U

Specification

  • Applications

    • Direct fastening of plastic and wooden windows in masonry and concrete, without any anchors
    • Efficient spaced fixing of windows and doors
    • Installation according to the RAL quality association guidelines for windows and doors

  • Properties

    • Burglary resistant (RC2), tested on steel-free plastic windows
    • Reduced forming moulding and exact fit due to perfect thread geometry
    • Fast installation, reliable anchoring
    • Case-hardened steel

  • Technical specifications

    • Head diameter: 8.5 mm
    • Drive: T30

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Frame anchor type RA-U 7.5x40 2261040601 7.5 40.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    40.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x40
    Unit
    100
    Frame anchor type RA-U 7.5x60 2261060601 7.5 60.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    60.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x60
    Unit
    100
    Frame anchor type RA-U 7.5x70 2261070601 7.5 70.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    70.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x70
    Unit
    100
    Frame anchor type RA-U 7.5x80 2261080601 7.5 80.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    80.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x80
    Unit
    100
    Frame anchor type RA-U 7.5x100 2261100601 7.5 100.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    100.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x100
    Unit
    100
    Frame anchor type RA-U 7.5x120 2261120601 7.5 120.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    120.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x120
    Unit
    100
    Frame anchor type RA-U 7.5x135 2261135601 7.5 135.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    135.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x135
    Unit
    100
    Frame anchor type RA-U 7.5x150 2261150601 7.5 150.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    150.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x150
    Unit
    100
    Frame anchor type RA-U 7.5x180 2261180601 7.5 180.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    180.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x180
    Unit
    100
    Frame anchor type RA-U 7.5x210 2261210601 7.5 210.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    210.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x210
    Unit
    100
