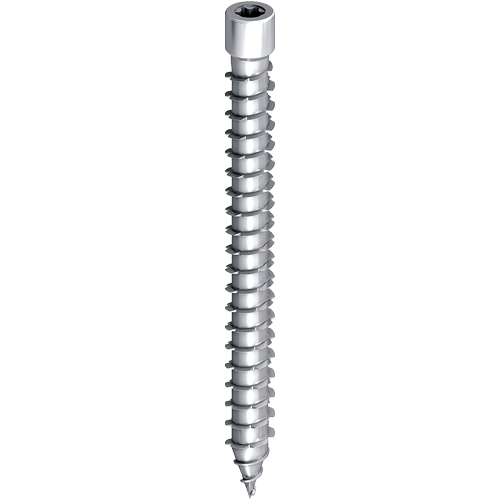

EJOT® frame anchor type SA-U
Specification
-
Applications

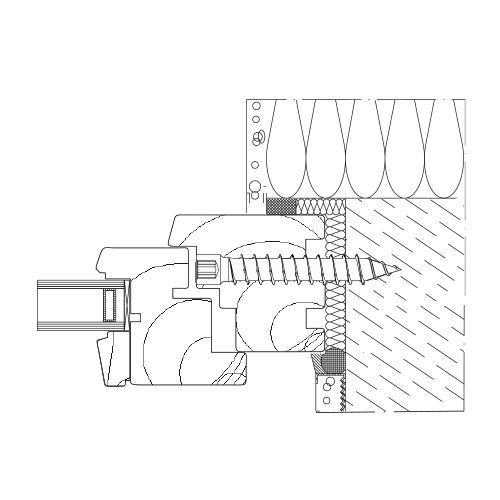

- Direct fastening of wooden or aluminumwood windows in masonry and concrete, without any anchors
- Efficient spaced fixing of windows and doors
- Installation according to the RAL quality association guidelines for windows and doors
-
Properties
- Burglary-resistant (RC2)
- Reduced forming moulding and exact fit due to perfect thread geometry
- Fast installation, reliable anchoring
- Slim head pulls into the wooden outer Frame flush with the surface
- Case-hardened steel
-
Technical specifications
- Head diameter: 7.5 mm
- Drive: T25
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Length mm | Material | Unit | |
|---|---|---|---|---|---|---|
| Frame anchor type SA-U 7.5x60 | 2249060601 | 7.5 | 60.0 | Zinc plated, blue passivated | TORX T25 | 100 |
Specifications
|
||||||
| Frame anchor type SA-U 7.5x80 | 2249080601 | 7.5 | 80.0 | Zinc plated, blue passivated | TORX T25 | 100 |
Specifications
|
||||||
| Frame anchor type SA-U 7.5x100 | 2249100601 | 7.5 | 100.0 | Zinc plated, blue passivated | TORX T25 | 100 |
Specifications
|
||||||
| Frame anchor type SA-U 7.5x120 | 2249120601 | 7.5 | 120.0 | Zinc plated, blue passivated | TORX T25 | 100 |
Specifications
|
||||||
| Frame anchor type SA-U 7.5x135 | 2249135601 | 7.5 | 135.0 | Zinc plated, blue passivated | TORX T25 | 100 |
Specifications
|
||||||
| Frame anchor type SA-U 7.5x150 | 2249150601 | 7.5 | 150.0 | Zinc plated, blue passivated | TORX T25 | 100 |
Specifications
|
||||||
| Frame anchor type SA-U 7.5x180 | 2249180601 | 7.5 | 180.0 | Zinc plated, blue passivated | TORX T25 | 100 |
Specifications
|
