EJOT® self-drilling screw JT3-3-5.5

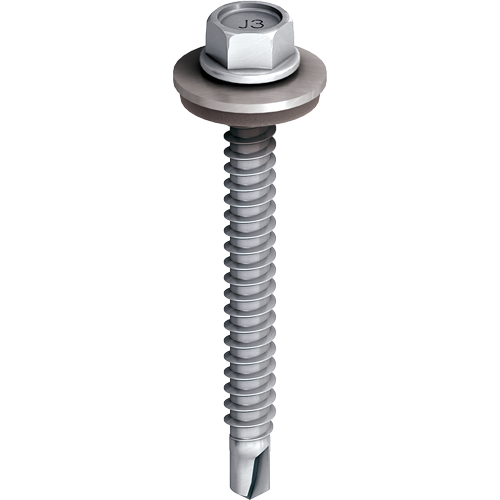

JT3-3-5,5

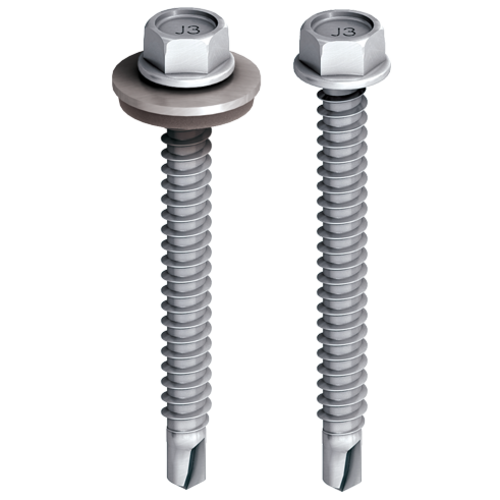

JT3-3-5_5_nw_2016

Specification

  • Applications

    • Fastening profiled steel sheet to 1–2.5 mm steel substructure
    • Fastening profiled aluminium sheet to 1–2.5 mm aluminium or steel substructure

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Drilling capacity tI + tII: 1.0 + 2.5 mm
    • Drive: Hexagon AF8

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT3-3-5.5x25-E16 3592211334 5.5 16 25.0 0.0 - 10.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 10.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-3-5.5x25-E16
    Unit
    500
    JT3-3-5.5x50-E16 3592811331 5.5 16 50.0 1.2 - 31.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    50.0
    Clamp thickness
    1.2 - 31.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-3-5.5x50-E16
    Unit
    100
    JT3-3-5.5x70-E16 3593911331 5.5 16 70.0 1.2 - 51.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    70.0
    Clamp thickness
    1.2 - 51.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-3-5.5x70-E16
    Unit
    100
