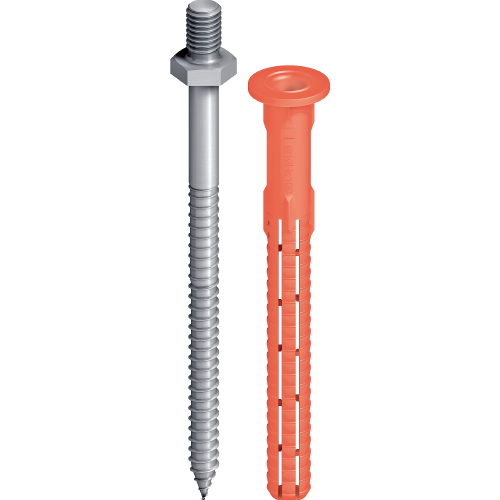

EJOT® universal anchor SDF-KB-10H/M8

Specification

  • Applications

    • Suitable for installation of support profiles with steel rods in rainscreen
    • Embedment of suspended ceilings
    • Fastening of ring bolts

    Notice

    Please observe the European Technical Approval ETA-10/0305 in the planning and processing of products. Further information about parameters and loads can be found in the approval under the tab "Download".

    * The load-carrying capacity and the influence of larger embedment depths in hollow or perforated brick (hnom > 70 mm) and/or different stones (acc. to ETA-10/0305 with regards to stone size, compression strength and hole pattern) has to be determined with tests on the building.

  • Properties

    • With M8 threaded connection
    • Approved for all common building materials
    • Reliable hold in problematic building material thanks to optimised expansion part
    • Radial expansion for reliable hold
    • Product identification through different sleeve colours
    • Double safety lock against torsion for secure installation
  • Technical specifications

    Characteristic values

    • Diameter: 10 mm
    • Drill hole depth: ≥ 90 mm
    • Effective embedment depth hnom: ≥ 70 mm
    • Drill-hole diameter d0: 10 mm
    • Through hole diameter of component to be attached df: ≤ 10.5 mm
    • Drive: AF 13
    • Length M8 threaded connection: 13 mm

    Characteristic loads

    • Tensile load NRk,p in concrete C12/15
      • Temperature range 30 °C / 50 °C: 4.50 kN
      • Temperature range 50 °C / 80 °C: 4.00 kN
    • Brick Mz 20-1.8, NF: 4.00 kN
    • Solid sand-lime brick KS 36, NF: 4.50 kN
    • Solid sand-lime brick KS 20, 8 DF: 4.50 kN
    • Solid lightweight concrete brick V6, 2 DF: 2.00 kN
    • Vertically perforated brick HLz 12-0.9, NF: 2.00 kN
    • Perforated sand-lime brick KSL 12, 4 DF: 2.50 kN
    • Cavity block made of lightweight concrete Hbl 10, 12 DF: 1.20 kN
    • Transverse load VRk,s
      • Anchor with A4 stainless steel screw: 10.91 kN
    • Bending moment MRk,s
      • Anchor with A4 stainless steel screw: 20.62 kN
    • Compressive strength aerated concrete [N/mm2]: 30 - 50 °C
      • Aerated concrete 4: 1.5 kN
      • Aerated concrete 5: 2.0 kN
      • Aerated concrete 6: 2.5 kN
      • Aerated concrete 7: 2.5 kN
    • Partial safety factor γMAAC: 2.0
*Anchor with steel screw with zinc-plated Cr(VI)-free coating (-V) upon request.

Filter

Selected filters

    Orderidentifier Article Number Unit
    SDF-KB-10Hx80/M8x13-E 8513080813 100

    Specifications

    Orderidentifier
    SDF-KB-10Hx80/M8x13-E
    Unit
    100
    SDF-KB-10Hx100/M8x13-E 8513100813 50

    Specifications

    Orderidentifier
    SDF-KB-10Hx100/M8x13-E
    Unit
    50
