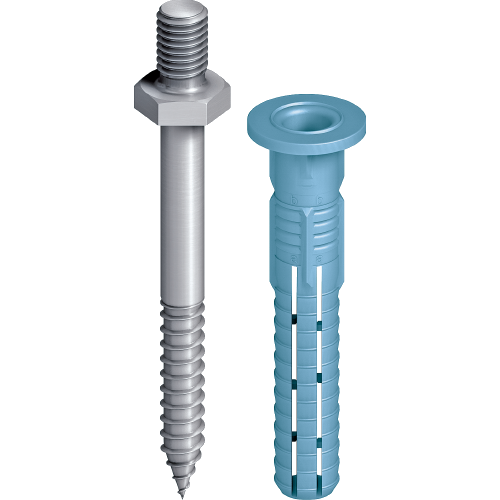

EJOT® facade anchor SDF-KB-10V_M8

Applications

• Suitable for installation of support profiles with steel rods in rainscreen
• Embedment of suspended ceilings
• Fastening of ring bolts

Notice

Please observe the European Technical Approval ETA-10/0305 in the planning and processing of products. Further information about parameters and loads can be found in the approval under the tab "Downloads".

Properties

• With M8 threaded connection
• Anchor with minimal embedment depth in concrete
• Very short expansion part for extremely fast installation
• Optimal expanding part due to radial expansion
• Very high bending moment
• Product identification through different sleeve colours
• Double safety lock against torsion for secure installation

Technical specifications

Characteristic values

• Diameter: 10 mm
• Hole depth in concrete h_1,1^: ≥ 70 mm
• Effective embedment depth in concrete h_nom,1: ≥ 40 mm
• Hole depth in masonry h_1,2: ≥ 70 mm
• Effective embedment depth in masonry h_nom,2: ≥ 50 mm
• Drill-hole diameter d₀: 10 mm
• Drive: AF 13
• Length M8 threaded connection: 13 mm

Characteristic loads

• Tensile load N_Rk,p in concrete C12/15
  • Temperature range 30 °C / 50 °C: 4.50 kN
  • Temperature range 50 °C / 80 °C: 4.00 kN
• F_RK brick Mz 20-1.8, NF: 2.50 kN
• F_RK solid sand-lime brick KS 36, NF: 4.00 kN
• F_RK solid sand-lime brick KS 20, 8 DF: 4.50 kN
• Transverse load V_Rk,s in concrete C12/15 bei h_nom,1 = 40 mm
  • Anchor with A4 stainless steel screw: 9.12 kN
• Transverse load V_Rk,s at h_nom,2 = 50 mm
  • Anchor with A4 stainless steel screw: 12.94 kN
• Bending moment M_Rk,s at h_nom,1 = 40 mm
  • Anchor with A4 stainless steel screw: 16.09 kN
• Side load M_Rk,s at h_nom,2 = 50 mm
  • Anchor with A4 stainless steel screw: 26.62 Nm
