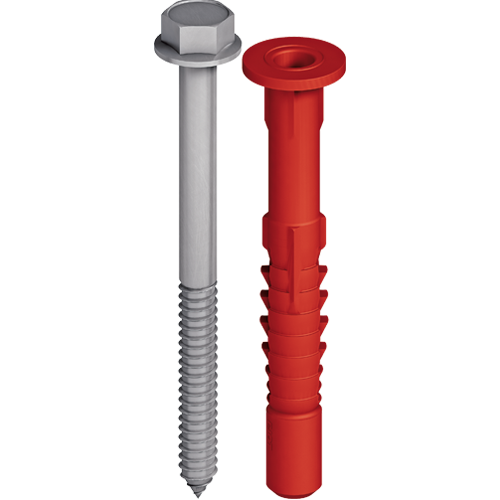

EJOT® facade anchor SDF-KB-14A

Specification

  • Applications

    • Installation of metal attachments
    • For multiple fastening of non-load-bearing systems according to EAD 330284
    • Suitable for the structural fastening of wall cupboards, cladding, metal angle pieces
  • Properties

    • Hexagon head with flange
    • Approved for all common building materials
    • Reliable hold in problematic building materials thanks to optimised expansion part
    • Radial expansion for reliable hold
    • Product identification through different sleeve colours
    • Double safety lock against torsion for secure installation

    Base materials
    Approved for

    • Cracked concrete
    • Non-cracked concrete
    • Solid masonry
    • Hollow and perforated bricks
    • Aerated concrete

    Note
    For planning, please observe approval ETA-15/0027. For bricks of unknown quality, the load-bearing capacity must be determined through pull-out tests on the structure. When used in concrete, a silicone lubricant paste (e.g. FUCHS CHEMPLEX SI-LK 2) and the use of an impact screwdriver with particularly high torque are recommended

  • Technical specifications

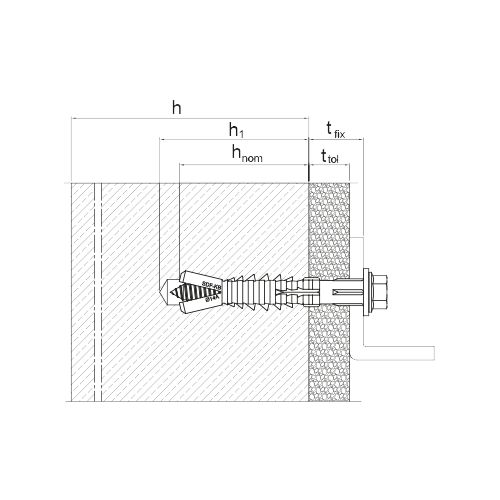

    Characteristic values

    • Diameter: 14 mm
    • Drive: Hexagon A/F17
    • Drill hole depth ≥ t: 80 mm
    • Embedment depth ≥ hv: 70 mm

    Permitted load*

    • Tensile load NRk,pin concrete > C12/15: 3.37 kN
    • Brick Mz 20-1,8, NF: 1.57 kN
    • Solid lime sand brick KS, 2 DF 20-2,0: 1.71 kN
    • Solid lime sand brick KS, 8 DF 20-1,8: 2.00 kN
    • Solid brick V, 3 DF: 0.86 kN
    • Vertically perforated brick HLz, 2 DF 28-1.2: 0.57 kN
    • Perforated sand-lime brick KSL, 8 DF 16-1.4: 0.71 kN
    • Cavity block tile made of lightweight concrete Hbl, 12 DF: 0.71 kN
    • Aerated concrete fCK ≥ 2 N/ mm2: 0.43 kN
    • Aerated concrete fCK ≥ 4 N/ mm2: 0.89 kN
    • Aerated concrete fCK ≥ 6 N/ mm2: 1.60 kN
    • Transverse load VRk,s
      • Steel screw (γMs = 1.25): 17.4 kN
      • Stainless steel screw (γMs = 1.56): 16.2 kN
    • Bending moment MRk,s
      • Steel screw (γMs = 1.25): 50.0 Nm
      • Stainless steel screw (γMs = 1.56): 46.7 Nm

     *applies to temperature range 30-50 oC / 50-80 oC

Filter

Selected filters

    Orderidentifier Article Number Unit
    SDF-KB-14Ax80-V 8590080430 50

    Specifications

    Orderidentifier
    SDF-KB-14Ax80-V
    Unit
    50
    SDF-KB-14Ax100-V 8590100430 50

    Specifications

    Orderidentifier
    SDF-KB-14Ax100-V
    Unit
    50
