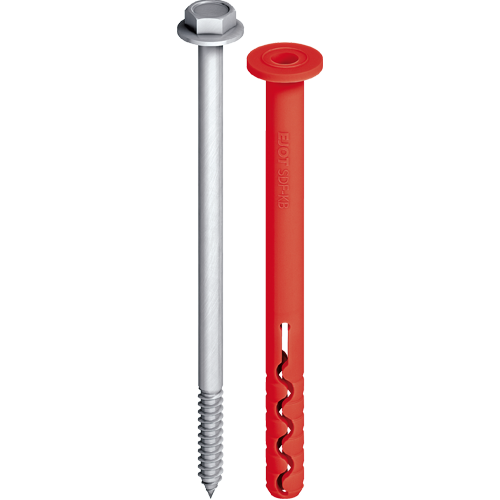

EJOT® facade anchor SDF-KB-8V

Applications

• For the embedment of metal substructures in solid brick masonry and concrete
• For multiple fastening of non-load-bearing systems according to EAD 330284

Properties

• Hexagon head with flange
• Small drill hole diameter
• Thermal and galvanic separation
• Product identification through different sleeve colours

Base materials
Approved for

• Cracked concrete
• Non-cracked concrete
• Solid masonry

Note
For planning and processing, please observe ETA-15/0387. For bricks of unknown quality, the load-bearing capacity must be determined through pull-out tests on the structure

Technical specifications

Characteristic values

• Diameter: 8.0 mm
• Drive: Hexagon A/F10
• Drill hole depth ≥ h₁: 60 mm
• Embedment depth ≥ h_nom: 50 mm

Permitted load*

• Tensile strength N_Rk,p in concrete < C16/20: 1.79 kN
• Tensile strength N_Rk,p in concrete ≥ C16/20: 2.58 kN
• Brick Mz 28-1,8, NF: 0.71 kN
• Solid lime sand brick KS, NF 20-2,0: 0.57 kN
• Shear load capacity V_Rk,s:
     Steel screw (γMs = 1.25): 4.24 kN
• Bending moment M_Rk,s:
     Steel screw (γMs = 1.25): 6.56 Nm

*applies to temperature range 30-50 °C/50-80 °C
