Anchor rod AST / threaded rod

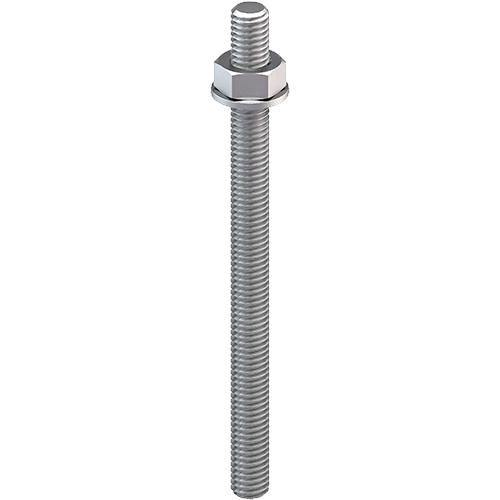

produktabbildung

Specification

  • Applications

    • For embedment in concrete and solid brick
    • For embedment in perforated brick in combination with mesh sleeve
    • Approved for polyester and vinyl ester composite mortar

  • Properties

    AST steel

    • Anchor rod: strength grade 5.8 or 6.8 acc. to EN ISO 898-1
    • Nut: strength grade 5 or 6 acc. to EN 20898-2
    • Washer: acc. to EN ISO 7089



    AST A4 stainless steel (1.4401 / 1.4571)

    • Anchor rod: EN 10088; strength grade 70 (A4-70) acc. to EN ISO 3506
    • Nut: EN 1088; strength grade 70 (A4-70) acc. to EN ISO 3506
    • Washer: acc. to EN 10088

  • Note

    To determine the characteristic load capacity in concrete, the approvals ETA-16/0107 and ETA-18/0861 have to be considered. To determine the characteristic load capacity in solid and perforated brick, approval ETA-16/0089 has to be considered.

Filter

Selected filters

    Orderidentifier Article Number Material Thread Unit
    AST M8x110-V 9570098110 Carbon Steel M8 10

    Specifications

    Material
    Carbon Steel
    Thread
    M8
    Orderidentifier
    AST M8x110-V
    Unit
    10
    AST M8x110-E 9571098110 Stainless Steel M8 10

    Specifications

    Material
    Stainless Steel
    Thread
    M8
    Orderidentifier
    AST M8x110-E
    Unit
    10
    AST M10x130-V 9570910130 Carbon Steel M10 10

    Specifications

    Material
    Carbon Steel
    Thread
    M10
    Orderidentifier
    AST M10x130-V
    Unit
    10
    AST M10x130-E 9571910130 Stainless Steel M10 10

    Specifications

    Material
    Stainless Steel
    Thread
    M10
    Orderidentifier
    AST M10x130-E
    Unit
    10
    AST M12x160-V 9570912160 Carbon Steel M12 10

    Specifications

    Material
    Carbon Steel
    Thread
    M12
    Orderidentifier
    AST M12x160-V
    Unit
    10
    AST M12x160-E 9571912160 Stainless Steel M12 10

    Specifications

    Material
    Stainless Steel
    Thread
    M12
    Orderidentifier
    AST M12x160-E
    Unit
    10
    M10 170 10 AST M10x170-V 9570910170 Carbon Steel M10 10

    Specifications

    Material
    Carbon Steel
    Thread
    M10
    Orderidentifier
    M10 170 10 AST M10x170-V
    Unit
    10
    M10 170 10 AST M10x170-E 9571910170 Stainless Steel M10 10

    Specifications

    Material
    Stainless Steel
    Thread
    M10
    Orderidentifier
    M10 170 10 AST M10x170-E
    Unit
    10
    AST M16x190-E 9571916190 Stainless Steel M16 10

    Specifications

    Material
    Stainless Steel
    Thread
    M16
    Orderidentifier
    AST M16x190-E
    Unit
    10
    M8 1.000 50 Threaded rod M8x1000 DIN 976 9560008000 Stainless Steel M8 50

    Specifications

    Material
    Stainless Steel
    Thread
    M8
    Orderidentifier
    M8 1.000 50 Threaded rod M8x1000 DIN 976
    Unit
    50
