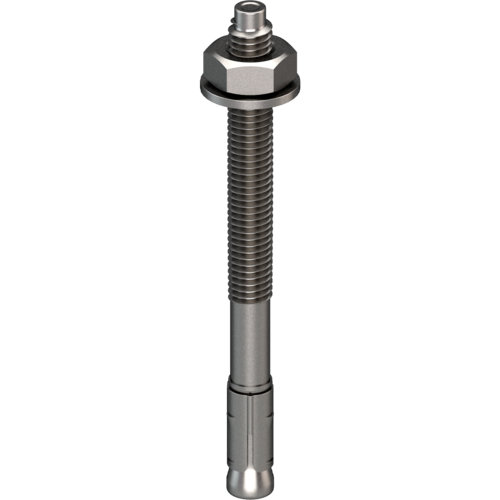

EJOT® Through bolt BA-E

BA-E

Specification

  • Applications

    • Torque Controlled Expansion Anchor for push through installations
    • punch bolt head prevents thread destruction
    • active Knurls ensuring a good grip and quick tightening of the anchor
    • cracked and non cracked concrete

  • Properties

    • Steel Structures, Colum Base Plates, Seatings, Barriers, Handrails, Ladders, Façade Systems
    • Stainless Steel A4

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    		Hole depth

    h1 ≥ mm

    		Unit
    BA-E 8/10 9650005112 8.0 72.0 10.0 60.0 100

    Specifications

    ø
    8.0
    Length
    72.0
    Clamping thickness

    tfix≤

    10.0
    Hole depth

    h1 ≥

    60.0
    Embedment
    45.0
    Material
    Stainless Steel
    Orderidentifier
    BA-E 8/10
    Unit
    100
    9650005114 8.0 92.0 30.0 100

    Specifications

    ø
    8.0
    Length
    92.0
    Clamping thickness

    tfix≤

    30.0
    Hole depth

    h1 ≥

    Embedment
    Material
    Stainless Steel
    Orderidentifier
    Unit
    100
    BA-E 8/50 9650005116 8.0 112.0 50.0 60.0 100

    Specifications

    ø
    8.0
    Length
    112.0
    Clamping thickness

    tfix≤

    50.0
    Hole depth

    h1 ≥

    60.0
    Embedment
    45.0
    Material
    Stainless Steel
    Orderidentifier
    BA-E 8/50
    Unit
    100
    BA-E 10/10 9650005132 10.0 92.0 10.0 75.0 40

    Specifications

    ø
    10.0
    Length
    92.0
    Clamping thickness

    tfix≤

    10.0
    Hole depth

    h1 ≥

    75.0
    Embedment
    60.0
    Material
    Stainless Steel
    Orderidentifier
    BA-E 10/10
    Unit
    40
    BA-E 10/20 9650005135 10.0 102.0 20.0 100

    Specifications

    ø
    10.0
    Length
    102.0
    Clamping thickness

    tfix≤

    20.0
    Hole depth

    h1 ≥

    Embedment
    Material
    Stainless Steel
    Orderidentifier
    BA-E 10/20
    Unit
    100
    BA-E 10/30 9650005136 10.0 112.0 30.0 75.0 25

    Specifications

    ø
    10.0
    Length
    112.0
    Clamping thickness

    tfix≤

    30.0
    Hole depth

    h1 ≥

    75.0
    Embedment
    60.0
    Material
    Stainless Steel
    Orderidentifier
    BA-E 10/30
    Unit
    25
    BA-E 10/50 9650005138 10.0 132.0 50.0 75.0 100

    Specifications

    ø
    10.0
    Length
    132.0
    Clamping thickness

    tfix≤

    50.0
    Hole depth

    h1 ≥

    75.0
    Embedment
    60.0
    Material
    Stainless Steel
    Orderidentifier
    BA-E 10/50
    Unit
    100
    BAE 12/5 9650005150 12.0 103.0 5.0 90.0 100

    Specifications

    ø
    12.0
    Length
    103.0
    Clamping thickness

    tfix≤

    5.0
    Hole depth

    h1 ≥

    90.0
    Embedment
    70.0
    Material
    Stainless Steel
    Orderidentifier
    BAE 12/5
    Unit
    100
    BA-E 12/50 9650005153 12.0 148.0 50.0 100

    Specifications

    ø
    12.0
    Length
    148.0
    Clamping thickness

    tfix≤

    50.0
    Hole depth

    h1 ≥

    Embedment
    Material
    Stainless Steel
    Orderidentifier
    BA-E 12/50
    Unit
    100
    BA-E 12/30 9650005154 12.0 128.0 30.0 90.0 100

    Specifications

    ø
    12.0
    Length
    128.0
    Clamping thickness

    tfix≤

    30.0
    Hole depth

    h1 ≥

    90.0
    Embedment
    70.0
    Material
    Stainless Steel
    Orderidentifier
    BA-E 12/30
    Unit
    100
