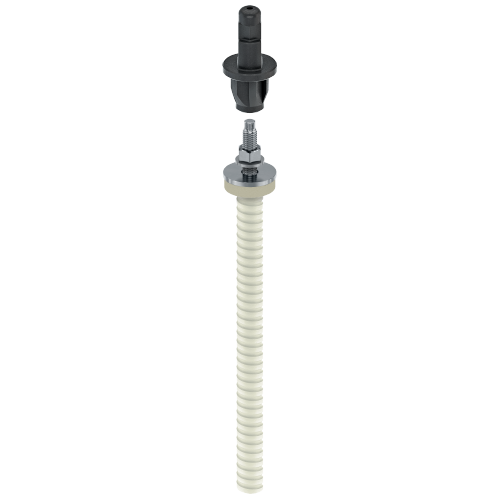

EJOT® Iso-Bar

Specification

  • Applications

    • For retro-fitting medium-heavy to heavy attachments to ETICS facades. e.g.
    • Awnings
    • Porch roofs
    • Consoles e.g. air conditioning units
    • Trellises
  • Properties

    • Low classified thermal bridge effect.
    • Subsequent, flexible installation.
    • Can be cut to length on site to suit the condition of the substrate.
    • Small product variety for insulation thicknesses up to 300mm.
    • Permanent seal against moisture-dricing rain test according to DIN EN 12155.
    • Easy and safe installation with innovative assembly tools.
    • Expansion-pressure free installation.
    • When used in combination with Multifix USF winter mortar it can be installed at temperatures down to -20°C.
  • Technical specifications

    Approval: Z-21.8-2083

    Nominal diameter: 22mm

    Thread connection: M12 x 35mm

    Clamping thickness of attachment part:≤25mm



    • Max. effective length* concrete/masonry
    •
    • Iso-bar 200: 160/120mm
    • Iso-bar 260: 220/180mm
    • Iso-bar 320: 280/240mm
    • Iso-bar 380: 340/300mm
    •
    • *max.effective length=thickness of non bearing layers, e.g. adhesive, plaster, reinforcement, insulation material, etc.
    •
    • Installation values for anchoring in concrete (cracked and uncracked)
    •
    • Drill hole diameter: 24mm
    • Min. Installation depth: 40mm
    • Min. Drill hole depth: 50mm
    •
    • Installation values for anchoring in masonry without mesh sleeve/with mesh sleeve
    •
    • Drill hole diameter: 24mm/26mm
    • Min. Installation depth: 80mm
    • Min. Drill hole depth: 100mm
