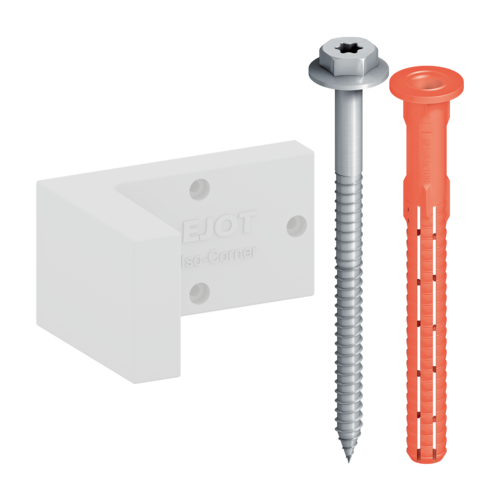

Iso-Corner kit SDF

Specification

  • Applications

    • Installation of the Iso-Corner in concrete, rain screen, solid and perforated brick
    • Consisting of 3 pcs. EJOT facade anchors SDF-KB-10H
  • Properties

    • Approved for all common building materials
    • Reliable hold in problematic building material due to optimised expansion part
    • Secure hold due to radial expansion
    • Double safety lock against torsion for secure installation
  • Technical specifications

    • Drill hole depth ≥ h1: 80 mm
    • Embedment depth ≥ hnom: ≥ 70 mm
    • Drill-hole diameter d0: 10 mm
    • Drive: A/F13/T40

ETICS products are only available from system suppliers

Filter

Selected filters

    Orderidentifier Article Number Unit
    Iso-Corner Kit SDF 100 8513100423 100

    Specifications

    Orderidentifier
    Iso-Corner Kit SDF 100
    Unit
    100
    Iso-Corner Kit SDF 140 8513140423 100

    Specifications

    Orderidentifier
    Iso-Corner Kit SDF 140
    Unit
    100
