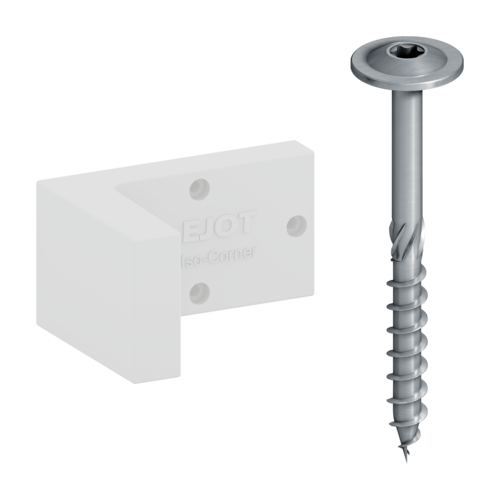

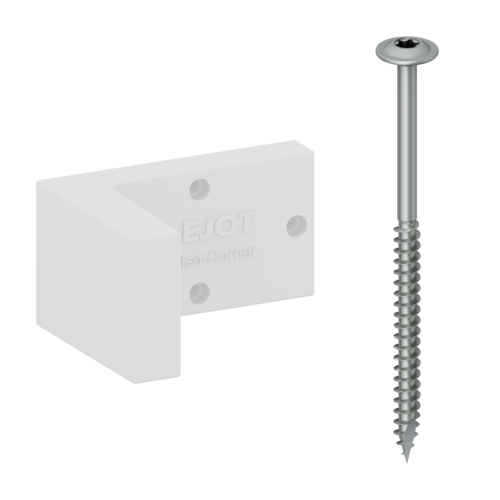

Iso-Corner kit T-FAST®

ejot-pdp-iso-corner-kit-t-fast-plus-500x500

Specification

  • Applications

    • For the approved fastening of the Iso-Corner on timber substrates
    • Consisting of 3 pieces T-FAST® woodscrew EJOT T-FAST® JW2-2-Plus-STS-8

  • Properties

    • Carbon steel with zinc-plated surface and dry lubricant
    • Plate increases the pulling power
    • Partial thread with milling ribs at the transition to the non-threaded part reduces the installation torque and simplifies the installation process
    • T-FAST® Plus point geometry for fast tip bite and significant reduced wood spliting ensure safe and efficient working

  • Technical specifications

    • Diameter: 8.0 mm
    • Head diameter: 20 mm
    • Drive: hexalobular TX40
    • Installation depth: 40 mm



    Note: To select and specify the correct fastening kits for the EJOT® Iso-Corner, please feel free to use our pre-calculaton service. Pre-dimensioning | EJOT COM

ETICS products are only available from system suppliers

Filter

Selected filters

    Orderidentifier Article Number Unit
    Iso-Corner kit T-Fast 120 8778000120 1

    Specifications

    Orderidentifier
    Iso-Corner kit T-Fast 120
    Unit
    1
    Iso-Corner kit T-Fast 140 8778000140 1

    Specifications

    Orderidentifier
    Iso-Corner kit T-Fast 140
    Unit
    1
