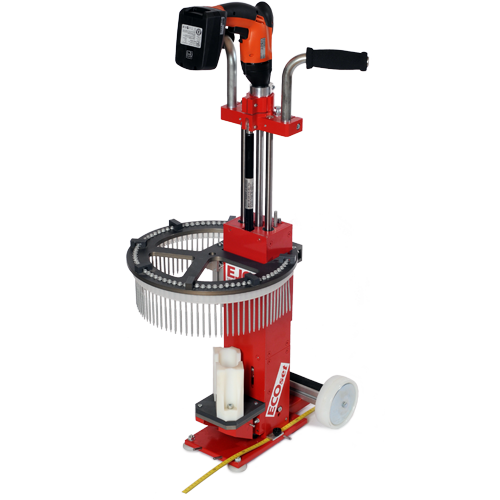

EJOT® Installation tool ECOset

Specification

  • Applications

    • For efficient fastening of belted EJOT Dabo® screws up to 160 mm length with EJOT® HTV 82/40 stress plate
    • Modification for TKR/HTV 82/40 TK combination on request
    • Up to 5 times higher fastening performance compared to conventional fastening solutions
    • Fatigue-free working in upright position with consistently high installation performance
    • Highest grade of reliability:
      The EJOT Dabo® screw is always fastened at right angles to the roof surface
  • Properties

    • suitable for building sites, robust design
    • Screw and stress plate fed automatically
    • due to the depth control
    • screws can not be overwound
    • Stress plate collator capacity 100 washers
    • Dabo collator capacity 75 screws
    • Depth control for proper adjustment of the
    • Installation depth
    • Protective insulation / interference-free
  • Technical specifications

    220 V drive

    • Voltage: 220 V ~
    • Power consumption: 600 watt
    • Power output: 310 watt
    • Connection cable length: 2.5 m
    • Weight: 23 kg



    18 V drive

    • Battery voltage: 18 V
    • Battery capacity: 4.0 Ah
    • Load speed: 0-1500 rpm
    • Idle speed: 0-1700 rpm
    • Max. torque (hard/soft): 30/10 Nm



    Included in delivery:

    • 1 installation tool (incl. screwgun, socket/bit and depth control)
    • 1 tool kit
    • 1 spray oil
    • 1 operating manual

Filter

Selected filters

    Orderidentifier Article Number Weight kg Unit
    Transport box 9151106000 23.0 1

    Specifications

    Weight
    23.0
    Orderidentifier
    Transport box
    Unit
    1
    EJOT® installation tool ECOset (18-V drive) 9153100000 23.0 1

    Specifications

    Weight
    23.0
    Orderidentifier
    EJOT® installation tool ECOset (18-V drive)
    Unit
    1
