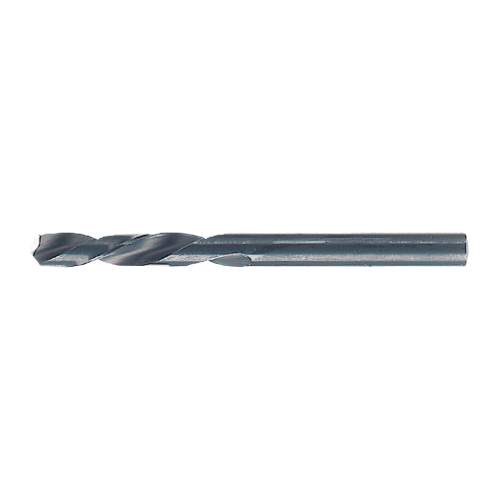

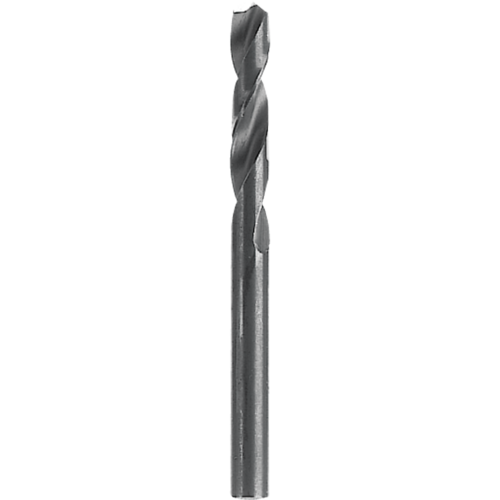

Precision drill bit HSS Form S
Specification
-
Applications
- For structural steel
-
Properties
- Form S
- Short spiral groove
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Rotation speed rpm | Unit |
|---|---|---|---|---|---|
| S 4.1/55 drill bit | 9250405000 | 55.0 | 4.1 | 1000.0 | 10 |
Specifications
|
|||||
| S 4.5/60 drill bit | 9250434000 | 60.0 | 4.5 | 900.0 | 10 |
Specifications
|
|||||
| S 4.5/175 drill bit | 9250436000 | 175.0 | 4.5 | 900.0 | 10 |
Specifications
|
|||||
| Drill bit S 4.45/235 | 9250450235 | 235.0 | 4.5 | 900.0 | 10 |
Specifications
|
|||||
| S 4.5/295 drill bit | 9250450295 | 295.0 | 4.5 | 900.0 | 10 |
Specifications
|
|||||
| S 5.0/60 drill bit | 9250409000 | 60.0 | 5.0 | 900.0 | 10 |
Specifications
|
|||||
| S 5.0/125 drill bit | 9250411000 | 125.0 | 5.0 | 900.0 | 10 |
Specifications
|
|||||
| S 5.0/220 drill bit | 9250413000 | 220.0 | 5.0 | 900.0 | 10 |
Specifications
|
|||||
| S 5.0/250 drill bit | 9250414000 | 250.0 | 5.0 | 900.0 | 10 |
Specifications
|
|||||
| S 5.1/62 drill bit | 9250439000 | 62.0 | 5.1 | 900.0 | 10 |
Specifications
|
|||||
| S 5.3/60 drill bit | 9250415000 | 60.0 | 5.3 | 800.0 | 10 |
Specifications
|
|||||
| S 5.3/125 drill bit | 9250417000 | 125.0 | 5.3 | 800.0 | 10 |
Specifications
|
|||||
| S 5.3/220 drill bit | 9250419000 | 220.0 | 5.3 | 800.0 | 10 |
Specifications
|
|||||
| S 5.3/290 drill bit | 9250438000 | 290.0 | 5.3 | 800.0 | 10 |
Specifications
|
|||||
| S 5.3/65 drill bit | 9250420000 | 65.0 | 5.5 | 750.0 | 10 |
Specifications
|
|||||
| S 5.5/125 drill bit | 9250422000 | 125.0 | 5.5 | 750.0 | 10 |
Specifications
|
|||||
| S 5.5/220 drill bit | 9250423000 | 220.0 | 5.5 | 750.0 | 10 |
Specifications
|
|||||
| S 5.5/290 drill bit | 9250424000 | 290.0 | 5.5 | 750.0 | 10 |
Specifications
|
|||||
| S 5.7/65 drill bit | 9250425000 | 65.0 | 5.7 | 700.0 | 10 |
Specifications
|
|||||
| S 5.7/125 drill bit | 9250427000 | 125.0 | 5.7 | 700.0 | 10 |
Specifications
|
|||||
| S 5.7/220 drill bit | 9250429000 | 220.0 | 5.7 | 700.0 | 10 |
Specifications
|
|||||
| S 5.7/290 drill bit | 9250433000 | 290.0 | 5.7 | 700.0 | 10 |
Specifications
|
|||||
| S 6.8/75 drill bit | 9250430000 | 75.0 | 6.8 | 600.0 | 10 |
Specifications
|
|||||
| S 6.8/225 drill bit | 9250510000 | 225.0 | 6.8 | 600.0 | 10 |
Specifications
|
|||||
| Twist drill HSS 6.8x325-30 | 9250680325 | 325.0 | 6.8 | 600.0 | 10 |
Specifications
|
|||||
| S 7.0/125 drill bit | 9250499000 | 125.0 | 7.0 | 600.0 | 10 |
Specifications
|
|||||
| S 7.0/225 drill bit | 9250493000 | 225.0 | 7.0 | 600.0 | 10 |
Specifications
|
|||||
| Twist drill HSS 7.0x325-30 | 9250700325 | 325.0 | 7.0 | 600.0 | 10 |
Specifications
|
|||||
| S 7.2/125 drill bit | 9250504000 | 125.0 | 7.2 | 600.0 | 10 |
Specifications
|
|||||
| S 7.2/225 drill bit | 9250494000 | 225.0 | 7.2 | 600.0 | 10 |
Specifications
|
|||||
| 7.2/325 drill bit | 9250720325 | 325.0 | 7.2 | 600.0 | 10 |
Specifications
|
|||||
| S 7.4/125 drill bit | 9250506000 | 125.0 | 7.4 | 600.0 | 10 |
Specifications
|
|||||
| S 7.4/225 drill bit | 9250497000 | 225.0 | 7.4 | 600.0 | 10 |
Specifications
|
|||||
| S 7.4/325 drill bit | 9250740325 | 325.0 | 7.4 | 600.0 | 10 |
Specifications
|
