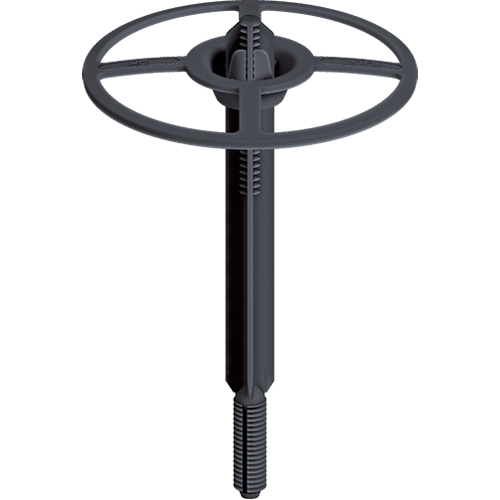

EJOT® insulation support anchor DH (set)

DH_zweiteilig

Specification

  • Applications

    • For fixing insulating material in the rear ventilated facade to all substrates

    Benefits

    • Prevents "quilt effect" (indentations in the insulation) due to retrofitting of the washer
    • Prevents gaping of the joints between the individual insulation panels at the joining edges
    • Installation depth limiter guarantees defined installation, independent of the substrate
    • Process reliable installation even with thick insulation boards
    • Packing and handling volume is reduced by over 60% compared to one-part insulation support anchors

    Notice

    For the installation of two-ply insulation, additional stress plates are required. The practicability depends on the respective insulation properties and needs to be tested on site. Rotary hole drilling is obligatory in aerated concrete and perforated brick masonry.

  • Properties

    • Requirements: 5 pcs. per m2
    • Easy installation with no additional expansion element
    • Parts can be positioned freely on the shaft
    • All-purpose for all building materials

  • Technical specifications

    • Plate diameter: 90 mm
    • Shaft diameter: 8 mm
    • Drill bit diameter: 8 mm
    • Drill hole depth ≥ t: 40 mm
    • Embedment depth ≥ hv: 30 mm
    • Point thermal transmittance χ: 0.0001 W/K
    • Carrying capacity (pull over washer): 0.2 kN
Order information: stress plate and shank also available separately

Filter

Selected filters

    Orderidentifier Article Number ø mm Material Insulation thickness mm Unit
    Set DH-60 8550060009 8.0 Plastic 60.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    60.0
    Orderidentifier
    Set DH-60
    Unit
    300
    Set DH-80 8550080009 8.0 Plastic 80.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    80.0
    Orderidentifier
    Set DH-80
    Unit
    300
    Set DH-100 8550100009 8.0 Plastic 100.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    100.0
    Orderidentifier
    Set DH-100
    Unit
    300
    Set DH-120 8550120009 8.0 Plastic 120.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    120.0
    Orderidentifier
    Set DH-120
    Unit
    300
    Set DH-140 8550140009 8.0 Plastic 140.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    140.0
    Orderidentifier
    Set DH-140
    Unit
    300
    Set DH-160 8550160009 8.0 Plastic 160.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    160.0
    Orderidentifier
    Set DH-160
    Unit
    300
    Set DH-180 8550180009 8.0 Plastic 180.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    180.0
    Orderidentifier
    Set DH-180
    Unit
    300
    Set DH-200 8550200009 8.0 Plastic 200.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    200.0
    Orderidentifier
    Set DH-200
    Unit
    300
    Set DH-220 8550220009 8.0 Plastic 220.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    220.0
    Orderidentifier
    Set DH-220
    Unit
    300
    Set DH-240 8550240009 8.0 Plastic 240.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    240.0
    Orderidentifier
    Set DH-240
    Unit
    300
