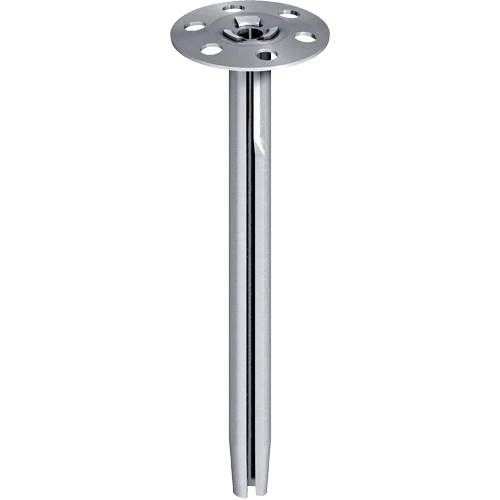

EJOT® Metal insulation support anchor DMH


Specification
-
Applications
- For fixing hard insulation materials
- In combination with the EJOT® DMT metal insulation stress plate and also for soft insulating materials
- For fixing insulation materials for high fire protection requirements
Notice
The EJOT® insulation support anchors are used to fasten soft and hard insulating material in rear ventilated facades. The insulation board fastening is carried-out according to DIN 18516-1.Rotary hole drilling is obligatory in aerated concrete and perforated brick masonry.
For the usage in non-accessible areas of rear ventilated facades, we recommend the metal insulation support anchor made of stainless steel.
-
Properties
- Easy installation by striking in, self-expanding
- Easy installation
- Fire performance class A1: non-combustible according to DIN EN 13501-1:2010-01 (test certificate no. PZ 3.1/17-226-1)
-
Technical specifications
Characteristic values
- Plate diameter: 35 mm
- Shaft diameter: 8 mm
- Drill bitdiameter: 8 mm
- Drill hole depth ≥ t: 60 mm
- Embedment depth ≥ hv: 40 mm
- Axial distance a ≥: 160 mm
- Edge distance ar≥: 80 mm
- Minimum component thickness hmin: 100 mm
Characteristic loads
Recommended tensile loads Frec
- Concrete ≥ B25: 0,20 kN
- Solid sand-lime brick: 0,20 kN
- Bricks: 0,20 kN
- Vertically perforated clay bricks: 0,05 kN
- Perforated sand-lime brick: 0,05 kN
Recommended transverse loads Frec
- Concrete ≥ B25: 0,25 kN
- Solid sand-lime brick: 0,25 kN
- Bricks: 0,25 kN
- Vertically perforated clay bricks: 0,10 kN
- Perforated sand-lime brick: 0,15 kN
A2 stainless steel available upon request
Filter
Selected filters
Orderidentifier | Article Number | ø mm | Material | Insulation thickness mm | Anchor length mm | Unit |
---|---|---|---|---|---|---|
DMH-8x80-V | 9700030301 | 8.0 | Carbon steel, aluzinc coated | 1.0 - 40.0 | 80.0 | 250 |
Specifications
|
||||||
DMH-8x80-E | 9700030302 | 8.0 | Stainless Steel | 1.0 - 30.0 | 80.0 | 250 |
Specifications
|
||||||
DMH-8x80-V | 9800030301 | 8.0 | Carbon steel, aluzinc coated | 1.0 - 40.0 | 80.0 | |
Specifications
|
||||||
9800030302 | 8.0 | Stainless Steel | 1.0 - 40.0 | 80.0 | ||
Specifications
|
||||||
DMH-8x110-V | 9700030602 | 8.0 | Carbon steel, aluzinc coated | 40.0 - 70.0 | 110.0 | 250 |
Specifications
|
||||||
DMH-8x110-E | 9700033603 | 8.0 | Stainless Steel | 40.0 - 70.0 | 110.0 | 250 |
Specifications
|
||||||
DMH-8x110-V | 9800030602 | 8.0 | Carbon steel, aluzinc coated | 40.0 - 70.0 | 110.0 | |
Specifications
|
||||||
9800033603 | 8.0 | Stainless Steel | 40.0 - 70.0 | 110.0 | ||
Specifications
|
||||||
DMH-8x140-V | 9700030603 | 8.0 | Carbon steel, aluzinc coated | 100.0 - 70.0 | 140.0 | 250 |
Specifications
|
||||||
DMH-8x140-E | 9700036904 | 8.0 | Stainless Steel | 70.0 - 100.0 | 140.0 | 250 |
Specifications
|
||||||
9800036904 | 8.0 | Stainless Steel | 70.0 - 100.0 | 140.0 | ||
Specifications
|
||||||
DMH-8x170-V | 9700030912 | 8.0 | Carbon steel, aluzinc coated | 130.0 - 100.0 | 170.0 | 250 |
Specifications
|
||||||
DMH-8x170-E | 9700035912 | 8.0 | Stainless Steel | 130.0 - 100.0 | 170.0 | 250 |
Specifications
|
||||||
DMH-8x170-V | 9800030912 | 8.0 | Carbon steel, aluzinc coated | 100.0 - 130.0 | 170.0 | |
Specifications
|
||||||
9800035912 | 8.0 | Stainless Steel | 100.0 - 130.0 | 170.0 | ||
Specifications
|
||||||
DMH-8x200-V | 9700031215 | 8.0 | Carbon steel, aluzinc coated | 160.0 - 130.0 | 200.0 | 250 |
Specifications
|
||||||
DMH-8x200-E | 9700035215 | 8.0 | Stainless Steel | 160.0 - 130.0 | 200.0 | 250 |
Specifications
|
||||||
9800035215 | 8.0 | Stainless Steel | 130.0 - 160.0 | 200.0 | ||
Specifications
|
||||||
DMH-8x250-V | 9700031520 | 8.0 | Carbon steel, aluzinc coated | 210.0 - 160.0 | 250.0 | 200 |
Specifications
|
||||||
DMH-8x250-E | 9700035520 | 8.0 | Stainless Steel | 160.0 - 210.0 | 250.0 | 200 |
Specifications
|
||||||
DMH-8x250-V | 9800031520 | 8.0 | Carbon steel, aluzinc coated | 160.0 - 210.0 | 250.0 | |
Specifications
|
||||||
9800035520 | 8.0 | Stainless Steel | 160.0 - 210.0 | 250.0 | ||
Specifications
|
||||||
DMH-8x300-V | 9700031300 | 8.0 | Carbon steel, aluzinc coated | 260.0 - 210.0 | 300.0 | 200 |
Specifications
|
||||||
DMH-8x300-E | 9700035300 | 8.0 | Stainless Steel | 210.0 - 260.0 | 300.0 | 200 |
Specifications
|
||||||
9800035300 | 8.0 | Stainless Steel | 210.0 - 260.0 | 300.0 | ||
Specifications
|
