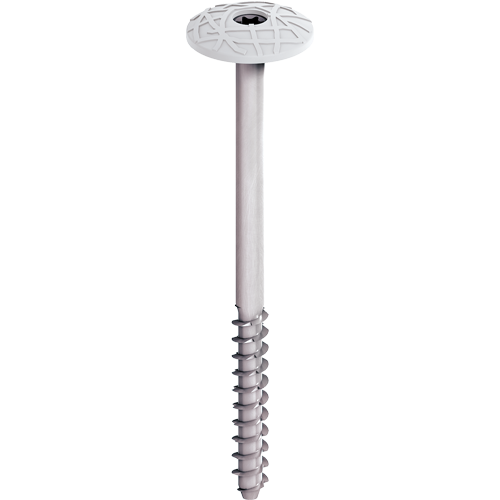

Insulation screw for direct installation into concrete DDS
Specification
-
Applications
- Fastening ceiling and acoustic insulation boards to concrete substrates
-
Properties
- Steel screw with self-drilling thread for a secure fastening
- Easy installation
- Short embedment depth
- Plastic injection moulded head with wood wool structure available in beige or white
- Can be used in conjunction with the DDT 70 washer for load spreading
-
Technical specifications
- Head diameter incl. plastic injection moulding:25 mm
- Drill hole diameter 6 mm
- Embedment depth in concrete: 20 mm
- Screw drive: TX30
- Recommended substrate Concrete
ETICS products are only available from system suppliers
Filter
Select system
-
other
Select color
- beige
- white
Selected filters
| Orderidentifier | Article Number | Length mm | Substrate category | Insulation thickness mm | Inner Hole Ø mm | Unit | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| EJOT DDS 125 white | 8419125740 | 125.0 | A | 100.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | |
Specifications
|
||||||||||
| EJOT DDS 125 beige | 8419125780 | 125.0 | A | 100.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | |
Specifications
|
||||||||||
| EJOT DDS 150 white | 8419150740 | 150.0 | A | 125.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | |
Specifications
|
