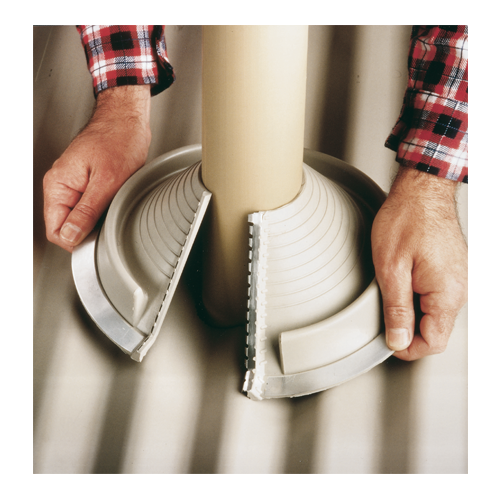

Dektite® Retrofit

Rohrmanschette_Retrofit

Specification

  • Applications

    • For subsequent waterproofing of pipes in places difficult to access

    Notice

    Use bulbtite rivets for corrugated fibre-cement sheets. Profile height max. 45 mm.

  • Benefits

    • Ideal for repairs of existing pipe systems
    • Eeasy to lock

  • Included in delivery

    • 1 Pipe flashing
    • 1 cartridge of EJOPLAST joint sealant
    • 1 EJOT® self-drilling screw set / optional EJOT® Bulbtite rivet set

Filter

Selected filters

    Orderidentifier Article Number For pipe Ø mm Base mm Roof pitch ° Cartridge capacity ml ml Number of screws Unit
    RF 801 8260104704 20.0 - 70.0 Ø 160 0.0 - 40.0 80.0 12 1

    Specifications

    For pipe Ø mm
    20.0 - 70.0
    Base mm
    Ø 160
    Roof pitch
    0.0 - 40.0
    Cartridge capacity ml
    80.0
    Number of screws
    12
    Orderidentifier
    RF 801
    Unit
    1
    RF 802 8260204704 50.0 - 185.0 Ø 273 0.0 - 40.0 80.0 19 1

    Specifications

    For pipe Ø mm
    50.0 - 185.0
    Base mm
    Ø 273
    Roof pitch
    0.0 - 40.0
    Cartridge capacity ml
    80.0
    Number of screws
    19
    Orderidentifier
    RF 802
    Unit
    1
    RF 803 8260304704 85.0 - 255.0 Ø 369 0.0 - 40.0 80.0 25 1

    Specifications

    For pipe Ø mm
    85.0 - 255.0
    Base mm
    Ø 369
    Roof pitch
    0.0 - 40.0
    Cartridge capacity ml
    80.0
    Number of screws
    25
    Orderidentifier
    RF 803
    Unit
    1
    RFS 4 (grey) 8260404704 235.0 - 425.0 780 x 680 0.0 - 40.0 310.0 57 1

    Specifications

    For pipe Ø mm
    235.0 - 425.0
    Base mm
    780 x 680
    Roof pitch
    0.0 - 40.0
    Cartridge capacity ml
    310.0
    Number of screws
    57
    Orderidentifier
    RFS 4 (grey)
    Unit
    1
