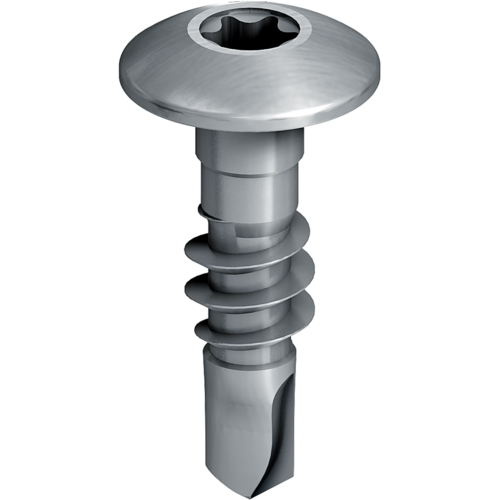

EJOT® self-drilling screw JT4-XT
Specification
-
Applications
- Fastener between the reinforcing profile and an ALUCOBOND® cassette
-
Properties
- A2 stainless steel
Benefits/Operating principle
- Fastener pierces the ALUCOBOND® panel and the aluminium substructure
- Thread-free part under the screw head allows an intentional further rotation of the screw head after surface connection

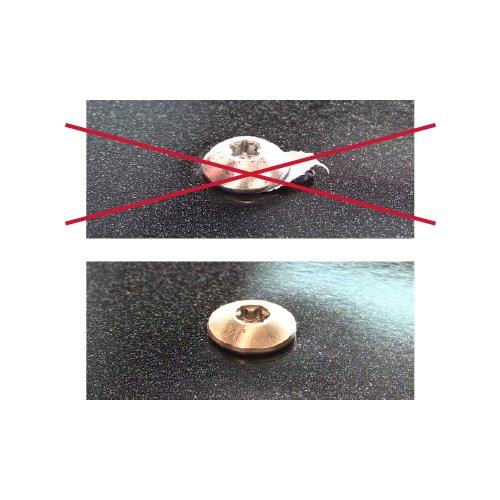

- Cutting ring under the screw head cuts protective film on the facade panel
- Protective film can be removed from the ALUCOBOND® panel without residue after assembly
- Also available as laquered version
-
Technical specifications
- Diameter: 6.0 mm
- Drilling capacity tI + tII: 2.0 mm
- Drive: Hexalobular drive T25
| Orderidentifier | Article Number | ø mm | Length mm | Panel thickness mm | Fastener material | Unit |
|---|---|---|---|---|---|---|
| JT4-XT-3/6-6.0x21 | 7384213300 | 6.0 | 21.0 | 4.0 | Stainless Steel | 500 |
