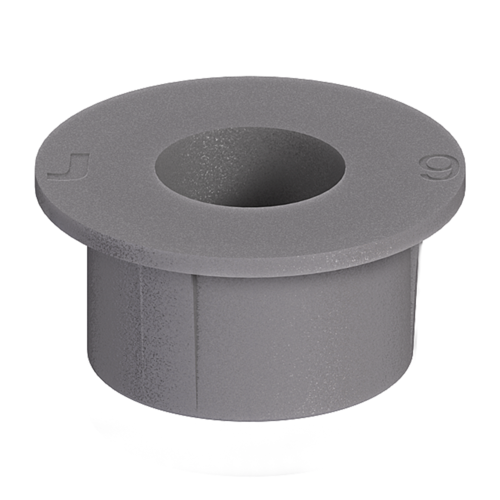

EJOT® centring bush F (fixed point)

Specification

  • Applications

    • Fastening facade panels in combination with LT screws with head diameter 16 mm
    • To form fixed points

    Notice

    Usability of bushes and LT screws must be agreed with the respective panel manufacturer. Please note the respective approval of the facade panel and the assembly instructions of the manufacturer.

  • Properties

    • Grey coloured plastic
    • For panel thickness 2/ 4 / 6 / 8 mm
    • UV-resistant

    Benefits

    • All holes in the panel are produced with the same diameter (11 mm), which can be done efficiently at the shop floor
    • No rivet installation gauge, no drilling gauge necessary
    • Fast assembly in combination with LT screws
    • Easily revisionable panel fastening
    • The 0.5 collar of the bush prevents direct contact between screw head and panel surface
  • Technical specifications

    • Bush internal hole Ø: 5.8 mm
    • Facade panel drill hole Ø: 11 mm

Filter

Selected filters

    Orderidentifier Article Number Unit
    EJOT centring bush Ø 11/2 F 3010005700 500

    Specifications

    Orderidentifier
    EJOT centring bush Ø 11/2 F
    Unit
    500
    EJOT centring bush Ø 11/4 F 3010009700 500

    Specifications

    Orderidentifier
    EJOT centring bush Ø 11/4 F
    Unit
    500
    EJOT centring bush Ø 11/6 F 3010011700 500

    Specifications

    Orderidentifier
    EJOT centring bush Ø 11/6 F
    Unit
    500
    EJOT centring bush Ø 11/8 F 3010007700 500

    Specifications

    Orderidentifier
    EJOT centring bush Ø 11/8 F
    Unit
    500
