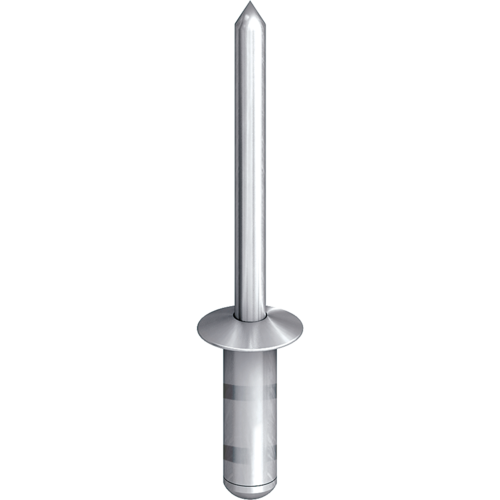

Multigrip rivet ECORIV® aluminium/stainless steel
Specification
-
Applications
- For side lap stitching of profiled sheet
-
Properties
- Rivet body made of aluminium (Al)
- Mandrel made of stainless steel (E)
- Captive locked
- ETA-22/0641
-
Note
Building authorities-approved rivets according to Z-14.1-4 available upon request.
Please select the appropriate product version (blind rivet AL/E-4.0x10.0 not contained in the approval)
| Orderidentifier | Article Number | ø mm | Length mm | Pilot Hole Ø mm | Clamp thickness mm | Material | Unit |
|---|---|---|---|---|---|---|---|
| Multi-range blind rivet ECORIV AL/E 4.0x9.5 RAL 9007 | 9337360220 | 4.0 | 9.5 | 4.1 | 1.2 - 6.3 | Stainless Steel | 100 |
Specifications
|
