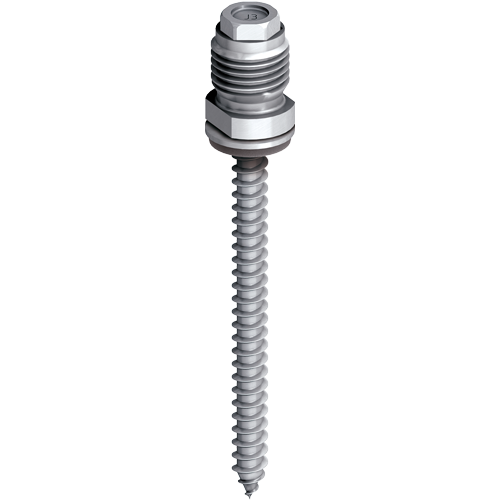

EJOT® scaffolding anchors JA3-GU-6.5

Specification

  • Applications

    • For installation into timber
  • Properties

    • A2 stainless steel
    • Consisting of GU threaded sleeve and JA3 self-tapping screw
  • Technical specifications

    • Diameter: 6.5 mm
    • Drive: Hexagon AF 3/8″
    • Sealing washer: E16
    • High thread: M14x1.5

Filter

Selected filters

    Orderidentifier Article Number ø mm Effective length scaffolding anchor mm Length of self-tapping screw mm Material Unit
    JA3-GU-6.5x55-E16/2 9403611311 6.5 55.0 75.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    55.0
    Length of self-tapping screw
    75.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x55-E16/2
    Unit
    50
    JA3-GU-6.5x70-E16/2 9403911311 6.5 70.0 90.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    70.0
    Length of self-tapping screw
    90.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x70-E16/2
    Unit
    50
    JA3-GU-6.5x80-E16/2 9404011311 6.5 80.0 100.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    80.0
    Length of self-tapping screw
    100.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x80-E16/2
    Unit
    50
    JA3-GU-6.5x95-E16/2 9404111311 6.5 95.0 115.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    95.0
    Length of self-tapping screw
    115.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x95-E16/2
    Unit
    50
    JA3-GU-6.5x105-E16/2 9404211311 6.5 105.0 125.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    105.0
    Length of self-tapping screw
    125.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x105-E16/2
    Unit
    50
    JA3-GU-6.5x130-E16/2 9404411311 6.5 130.0 150.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    130.0
    Length of self-tapping screw
    150.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x130-E16/2
    Unit
    50
    JA3-GU-6.5x155-E16/2 9404611311 6.5 155.0 175.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    155.0
    Length of self-tapping screw
    175.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x155-E16/2
    Unit
    50
    JA3-GU-6.5x180-E16/2 9404711311 6.5 180.0 200.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    180.0
    Length of self-tapping screw
    200.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x180-E16/2
    Unit
    50
