EJOFAST® self-drilling screw JF3-FR-Plus-4.9

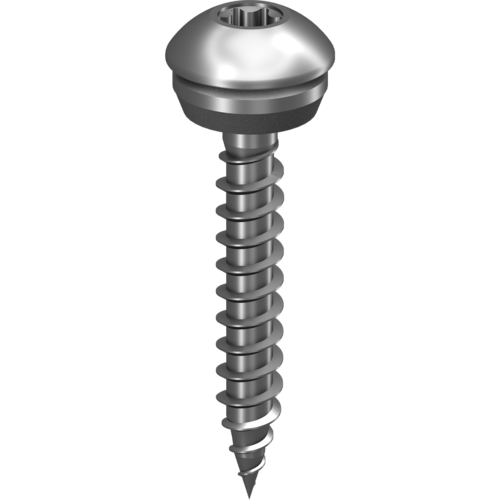

JF3-Plus-FR-4,9x35-E11_1200x1200

Specification

  • Applications

    • Fastening profiled steel or aluminium sheets to timber substructures

  • Properties

    • A2 stainless steel with hardened steel point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Reduced swarf fastening
    • Assembly without pre-drilling
    • Non-skid application
    • High load-bearing capacity
    • With truss head

  • Technical specifications

    • Diameter: 4.9 mm
    • Drill capacity tI + tII: 0.8 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1500 rpm
Orderidentifier Article Number Ø Sealing Washer mm Length mm threaded length mm Unit
JF3-FR-Plus-4,9x35 E11 RAL 9002 3333692082 11 35.0 28.0

Specifications

Ø Sealing Washer mm
11
Length
35.0
threaded length
28.0
Orderidentifier
JF3-FR-Plus-4,9x35 E11 RAL 9002
Unit
