EJOT® self-drilling screw JT2-2H-Plus-5.5 EJOGUARD

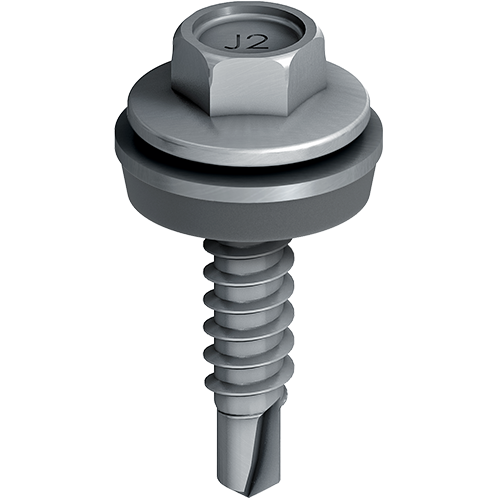

JT2-2H-Plus-5,5_Pos1

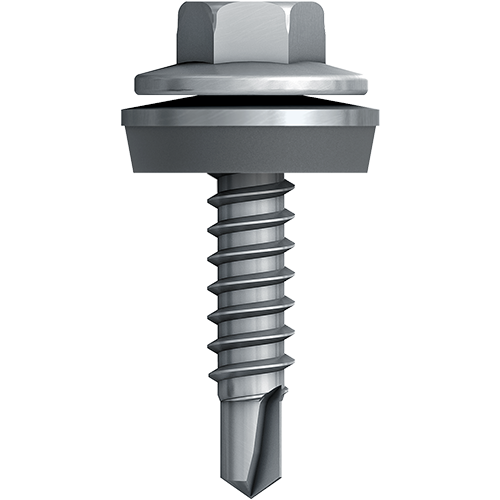

JT2-2H-Plus-5,5_Pos2

Specification

  • Applications

    • Side lap stitching of profiled steel sheets
    • Fastening profiled steel sheets to 0.4 – 2.0 mm steel substructure
    • For high-strength steel substructures according to ETA-
      10/0200

  • Properties

    • Case-hardened steel
    • EJOGUARD corrosion protection
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
    • With free spin zone under screw head for effective side lap stitching

  • Technical specifications

    • Diameter: 5.5 mm
    • Drill capacity tI + tII: 1.5 + 2.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT2-2H-5.5x22 3592500997 5.5 0 - none 25.0 0.0 - 9.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    25.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-2H-5.5x22
    Unit
    500
    JT2-2H-Plus-5.5x25 V16 3592521997 5.5 16 25.0 0.0 - 9.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-2H-Plus-5.5x25 V16
    Unit
    500
