EJOT® self-drilling screw JT2-3-4.8x19 collated

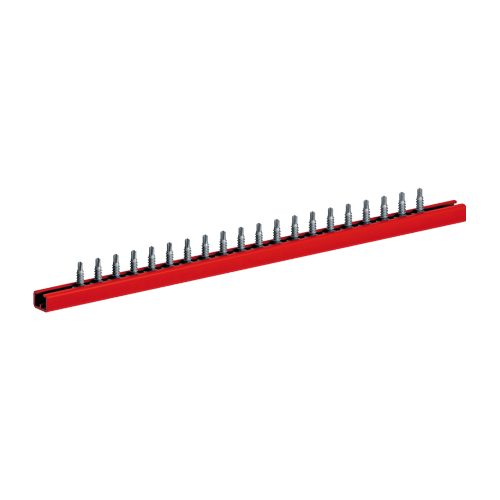

Magazinstreifen-JT2-3-4_8_foto1

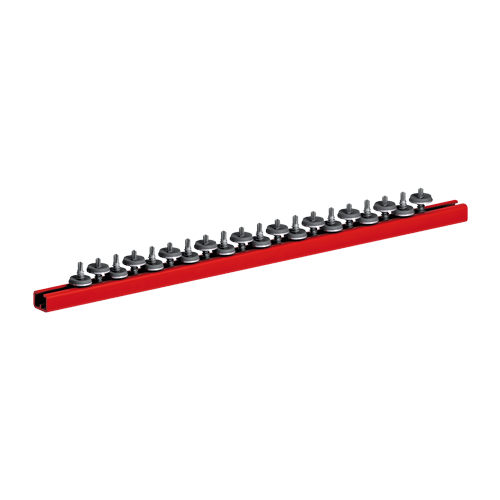

Magazinstreifen-JT2-3-4_8_foto2

Specification

  • Applications

    • Fastening profiled steel sheets to 2 mm steel substructure
    • Side lap stitching of profiled steel sheets
    • Suitable for installation with the EJOFAST® JF screwdriver

  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
    • Loose or collated

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 1.5 + 2.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm
Orderidentifier Article Number ø mm Length mm Clamp thickness mm Unit
JT2-3-4.8x19 collated 3365000000 4.8 19.0 0.0 - 11.0 500

Specifications

ø
4.8
Length
19.0
Clamp thickness
0.0 - 11.0
Fastener material
Carbon Steel
Orderidentifier
JT2-3-4.8x19 collated
Unit
500
