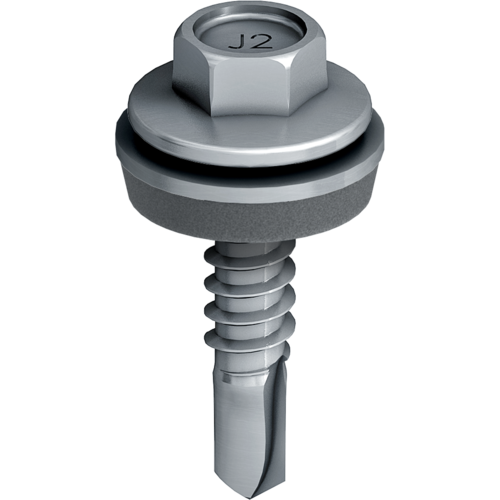

EJOT® self-drilling screw JT2-6-5.5 F12

JT2-6-5,5x25-V16

Specification

  • Applications

    • Fastening profiled steel sheets to 1.5 - 4 mm steel substructure
    • For high-strength steel substructures according to ETA-21/0420

  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 2.0 + 4.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT2-6-5.5x19-V16 3573221634 5.5 16 19.0 0.0 - 4.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    19.0
    Clamp thickness
    0.0 - 4.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-5.5x19-V16
    Unit
    500
    JT2-6-5.5x22-V16 3573321634 5.5 16 22.0 0.0 - 7.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    22.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-5.5x22-V16
    Unit
    500
    JT2-6-5.5x25-V16 3573421634 5.5 16 25.0 0.0 - 10.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 10.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-5.5x25-V16
    Unit
    500
    JT2-6-5.5x25-V16 PU100 6573421634 5.5 16 25.0 0.0 - 10.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 10.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-5.5x25-V16 PU100
    Unit
    100
