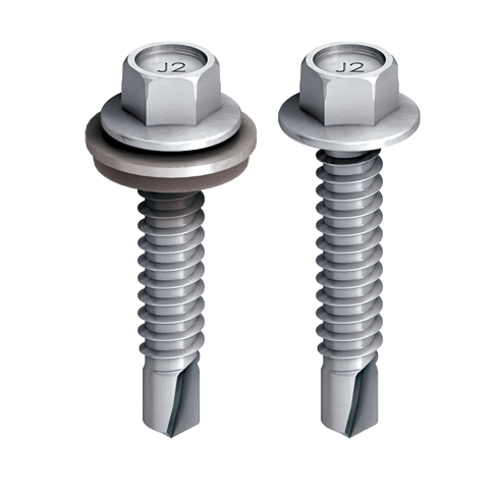

EJOT® self-drilling screw JT2-6-6.3

JT2-6-6,3
JT2-6-6_3_nw_2016

Specification

  • Applications

    • Fastening profiled steel sheets to 2–5 mm steel substructure

  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 6.3 mm
    • Drilling capacity tI + tII: 1.5 + 5.0 mm
    • Drive: Hexagon AF 3/8"
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT2-6-6.3x19-V16 3574221634 6.3 16 19.0 0.0 - 4.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    19.0
    Clamp thickness
    0.0 - 4.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-6.3x19-V16
    Unit
    100
    JT2-6-6.3x22-V16 3574321634 6.3 16 22.0 0.0 - 7.0 500

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    22.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-6.3x22-V16
    Unit
    500
    JT2-6-6.3x25-V16 3574421634 6.3 16 25.0 0.0 - 10.0 500

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 10.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-6.3x25-V16
    Unit
    500
    JT2-6-6.3x25-V16 PU100 6574421634 6.3 16 25.0 0.0 - 10.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 10.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-6.3x25-V16 PU100
    Unit
    100
    JT2-6-6.3x32-V16 3574521634 6.3 16 32.0 0.0 - 17.0 500

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    32.0
    Clamp thickness
    0.0 - 17.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-6.3x32-V16
    Unit
    500
    JT2-6-6.3x38-V16 3574621634 6.3 16 38.0 0.0 - 23.0 500

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    38.0
    Clamp thickness
    0.0 - 23.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-6-6.3x38-V16
    Unit
    500
