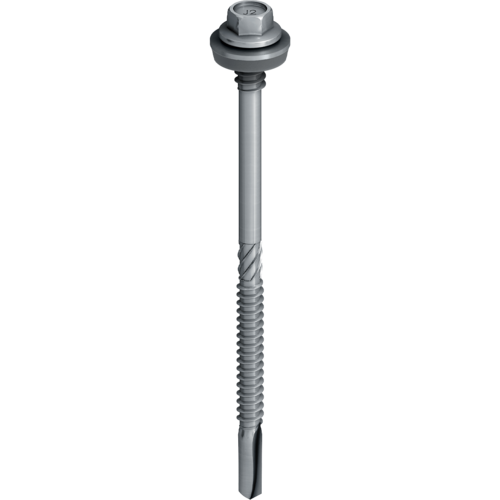

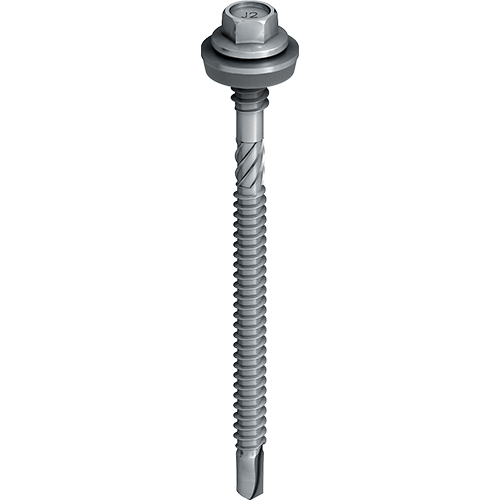

EJOT® self-drilling screw JT2-D-12-5.5/6.3

Specification

  • Applications

    • Steel profiled insulated sandwich panels to hot rolled steel sections
  • Properties

    • Carbon steel with organic corrosion resistant finish
  • Technical specifications

    • Drive: 8mm clip hex one piece socket
    • Steel sections from 4.0mm to 12.0mm in thickness
    • Carbon steel with organic corrosion resistant finish

Filter

Selected filters

    Orderidentifier Article Number Length mm Clamp thickness mm Unit
    JT2-D-12-5.5/6.3x80-E19 EJOGUARD 3564712614 80.0 40.0 - 59.0 200

    Specifications

    Length
    80.0
    Clamp thickness
    40.0 - 59.0
    Orderidentifier
    JT2-D-12-5.5/6.3x80-E19 EJOGUARD
    Unit
    200
    JT2-D-12-5.5/6.3x95-E19 EJOGUARD 3564912614 95.0 50.0 - 74.0 200

    Specifications

    Length
    95.0
    Clamp thickness
    50.0 - 74.0
    Orderidentifier
    JT2-D-12-5.5/6.3x95-E19 EJOGUARD
    Unit
    200
    JT2-D-12-5.5/6.3x115-E19 EJOGUARD 3565212614 115.0 60.0 - 94.0 150

    Specifications

    Length
    115.0
    Clamp thickness
    60.0 - 94.0
    Orderidentifier
    JT2-D-12-5.5/6.3x115-E19 EJOGUARD
    Unit
    150
    JT2-D-12-5.5/6.3x135-E19 EJOGUARD 3565412614 135.0 70.0 - 114.0 100

    Specifications

    Length
    135.0
    Clamp thickness
    70.0 - 114.0
    Orderidentifier
    JT2-D-12-5.5/6.3x135-E19 EJOGUARD
    Unit
    100
    JT2-D-12-5.5/6.3x155-E19 EJOGUARD 3565712614 155.0 90.0 - 134.0 100

    Specifications

    Length
    155.0
    Clamp thickness
    90.0 - 134.0
    Orderidentifier
    JT2-D-12-5.5/6.3x155-E19 EJOGUARD
    Unit
    100
    JT2-D-12-5.5/6.3x175-E19 EJOGUARD 3565812614 175.0 100.0 - 154.0 100

    Specifications

    Length
    175.0
    Clamp thickness
    100.0 - 154.0
    Orderidentifier
    JT2-D-12-5.5/6.3x175-E19 EJOGUARD
    Unit
    100
    JT2-D-12-5.5/6.3x195-E19 EJOGUARD 3569512614 195.0 120.0 - 174.0 100

    Specifications

    Length
    195.0
    Clamp thickness
    120.0 - 174.0
    Orderidentifier
    JT2-D-12-5.5/6.3x195-E19 EJOGUARD
    Unit
    100
    JT2-D-12-5.5/6.3x215-E19 EJOGUARD 3569612614 215.0 140.0 - 194.0 100

    Specifications

    Length
    215.0
    Clamp thickness
    140.0 - 194.0
    Orderidentifier
    JT2-D-12-5.5/6.3x215-E19 EJOGUARD
    Unit
    100
    JT2-D-12-5.5/6.3x235-E19 EJOGUARD 3567112614 235.0 160.0 - 214.0 100

    Specifications

    Length
    235.0
    Clamp thickness
    160.0 - 214.0
    Orderidentifier
    JT2-D-12-5.5/6.3x235-E19 EJOGUARD
    Unit
    100
    JT2-D-12-5.5/6.3x250-E19 EJOGUARD 3567212614 250.0 175.0 - 229.0 100

    Specifications

    Length
    250.0
    Clamp thickness
    175.0 - 229.0
    Orderidentifier
    JT2-D-12-5.5/6.3x250-E19 EJOGUARD
    Unit
    100
