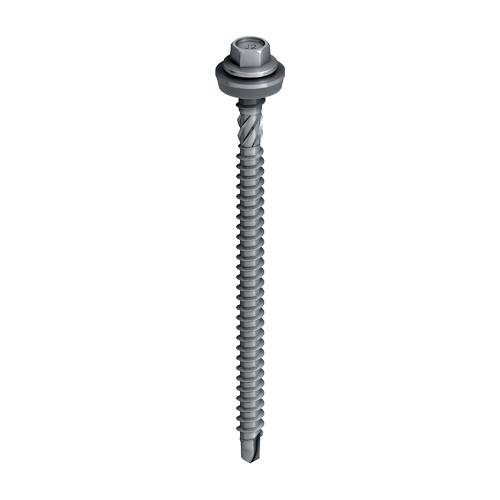

EJOT® self-drilling screw JT2-D-2-6.5/7.0 EJOGUARD

Specification

  • Applications

    • Fastening sandwich panels to timber subsructure
  • Properties

    • Case-hardened steel
    • EJOGUARD corrosion protection
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • High thread
  • Technical specifications

    Diameter: 6.5 mm
    Drilling capacity tI + tII: 2.0 mm
    Drive: Hexagon A/F8
    ø high thread: 7.0 mm
    Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number Length mm Clamp thickness mm Unit
    JT2-D-2-6.5/7.0x100-E19 EJOGUARD 3561021624 100.0 16.0 - 50.0 100

    Specifications

    Length
    100.0
    Clamp thickness
    16.0 - 50.0
    Orderidentifier
    JT2-D-2-6.5/7.0x100-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x120-E19 EJOGUARD 3561221625 120.0 36.0 - 70.0 100

    Specifications

    Length
    120.0
    Clamp thickness
    36.0 - 70.0
    Orderidentifier
    JT2-D-2-6.5/7.0x120-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x140-E19 EJOGUARD 3561421624 140.0 56.0 - 94.0 100

    Specifications

    Length
    140.0
    Clamp thickness
    56.0 - 94.0
    Orderidentifier
    JT2-D-2-6.5/7.0x140-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x160-E19 EJOGUARD 3561621624 160.0 76.0 - 110.0 100

    Specifications

    Length
    160.0
    Clamp thickness
    76.0 - 110.0
    Orderidentifier
    JT2-D-2-6.5/7.0x160-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x260-E19 EJOGUARD 3562621624 160.0 167.0 - 210.0 100

    Specifications

    Length
    160.0
    Clamp thickness
    167.0 - 210.0
    Orderidentifier
    JT2-D-2-6.5/7.0x260-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x180-E19 EJOGUARD 3561821624 180.0 96.0 - 140.0 100

    Specifications

    Length
    180.0
    Clamp thickness
    96.0 - 140.0
    Orderidentifier
    JT2-D-2-6.5/7.0x180-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x200-E19 EJOGUARD 3562021624 200.0 116.0 - 150.0 100

    Specifications

    Length
    200.0
    Clamp thickness
    116.0 - 150.0
    Orderidentifier
    JT2-D-2-6.5/7.0x200-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x240-E19 EJOGUARD 3562421624 240.0 156.0 - 190.0 100

    Specifications

    Length
    240.0
    Clamp thickness
    156.0 - 190.0
    Orderidentifier
    JT2-D-2-6.5/7.0x240-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x280-E19 EJOGUARD 3562821624 280.0 196.0 - 230.0 100

    Specifications

    Length
    280.0
    Clamp thickness
    196.0 - 230.0
    Orderidentifier
    JT2-D-2-6.5/7.0x280-E19 EJOGUARD
    Unit
    100
    JT2-D-2-6.5/7.0x300-E19 EJOGUARD 3563021624 300.0 216.0 - 250.0 100

    Specifications

    Length
    300.0
    Clamp thickness
    216.0 - 250.0
    Orderidentifier
    JT2-D-2-6.5/7.0x300-E19 EJOGUARD
    Unit
    100
