EJOT® self-drilling screw JT2-ST-2-6.8

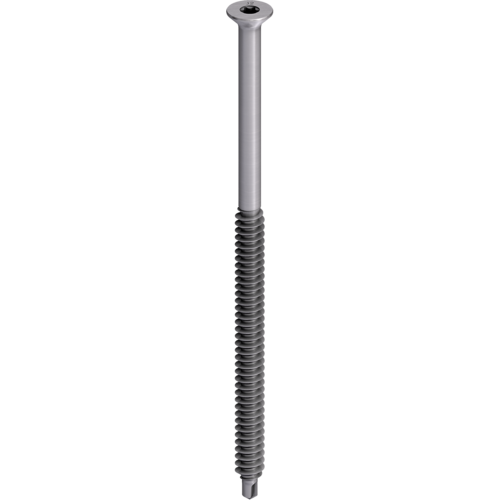

JT2-ST-2-6,8_Pos2

Specification

  • Applications

    • Fastening timber components to thin-walled steel substructures
    • Fastening fixing rails to thin-walled steel and aluminium substructures

  • Properties

    • Case-hardened steel
    • High-grade coating to improve the corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
    • With countersunk head

  • Technical specifications

    • Diameter: 6.8 mm
    • Drilling capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexalobular drive TX25
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT2-ST-2-6.8x205 7282305609 6.8 0 - none 205.0 130.0 - 195.0 100

    Specifications

    ø
    6.8
    Ø Sealing Washer mm
    0 - none
    Length
    205.0
    Clamp thickness
    130.0 - 195.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.8x205
    Unit
    100
    JT2-ST-2-6.8x245 7282345609 6.8 0 - none 245.0 170.0 - 235.0 100

    Specifications

    ø
    6.8
    Ø Sealing Washer mm
    0 - none
    Length
    245.0
    Clamp thickness
    170.0 - 235.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.8x245
    Unit
    100
    JT2-ST-2-6.8x285 7282385609 6.8 0 - none 285.0 210.0 - 275.0 100

    Specifications

    ø
    6.8
    Ø Sealing Washer mm
    0 - none
    Length
    285.0
    Clamp thickness
    210.0 - 275.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.8x285
    Unit
    100
    JT2-ST-2-6.8x325 7282335609 6.8 0 - none 325.0 250.0 - 315.0 100

    Specifications

    ø
    6.8
    Ø Sealing Washer mm
    0 - none
    Length
    325.0
    Clamp thickness
    250.0 - 315.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.8x325
    Unit
    100
