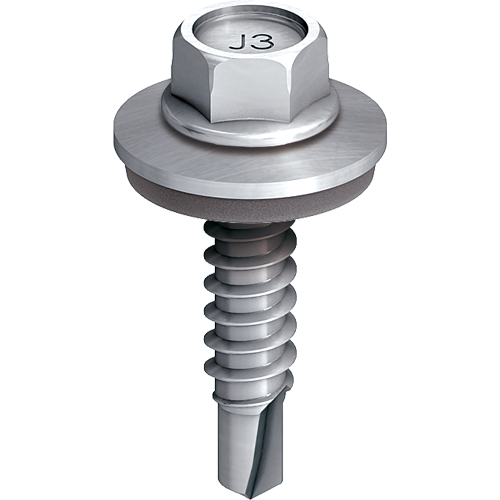

EJOT® self-drilling screw JT3-2H-Plus-5.5

JT3-2H-Plus-5,5

Specification

  • Applications

    • Side lap stitching of profiled steel and aluminium sheets
    • Fastening profiled steel and aluminium sheets to cassette system walls

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head for side lap stitching

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.5 + 2.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT3-2H-Plus-5.5x25-E16 3592211391 5.5 16 25.0 0.0 - 7.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2H-Plus-5.5x25-E16
    Unit
    500
    JT3-2H-Plus-5.5x25-E16 PU100 6592211391 5.5 16 25.0 0.0 - 7.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2H-Plus-5.5x25-E16 PU100
    Unit
    100
    JT3-2H-Plus-5.5x35-E16 3592511391 5.5 16 35.0 0.0 - 16.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    35.0
    Clamp thickness
    0.0 - 16.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2H-Plus-5.5x35-E16
    Unit
    500
    JT3-2H-Plus-5.5x30 E16 3592311391 5.5 16 30.0 0.0 - 11.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    30.0
    Clamp thickness
    0.0 - 11.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2H-Plus-5.5x30 E16
    Unit
    500
