EJOT® self-drilling screw JT3-6-5.5

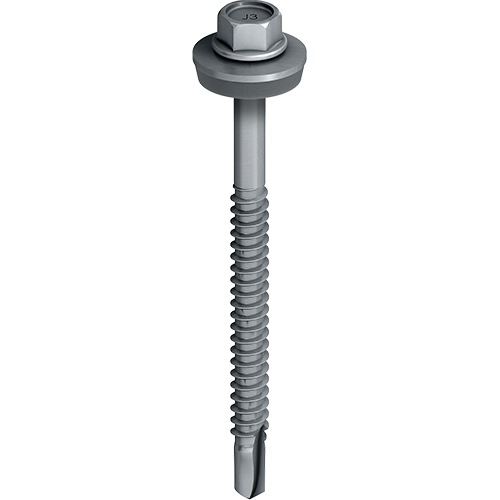

Bohrschraube_JT3-6-5_5x70-E16

Specification

  • Applications

    • Fastening profiled steel sheets to 1.5 – 4 mm steel substructure
    • Fastening profiled aluminium sheets and sandwich panels to 1.5 – 4 mm steel substructure

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 5.0 mm / 2.0 + 4.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Fastener material Unit
    JT3-2H-4.8x19 E14 3591977351 5.5 14 19.0 0.0 - 4.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    14
    Length
    19.0
    Clamp thickness
    0.0 - 4.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2H-4.8x19 E14
    Unit
    500
    JT3-6-5.5x25-E16 3572211361 5.5 16 25.0 0.0 - 7.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x25-E16
    Unit
    500
    JT3-6-5.5x25-E16 VE100 6572211361 5.5 16 25.0 0.0 - 7.0 Stainless Steel 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x25-E16 VE100
    Unit
    100
    JT3-6-5.5x30-E16 3572311361 5.5 16 30.0 0.0 - 11.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    30.0
    Clamp thickness
    0.0 - 11.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x30-E16
    Unit
    500
    JT3-6-5.5x30-E16 PU100 6572311361 5.5 16 30.0 0.0 - 11.0 Stainless Steel 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    30.0
    Clamp thickness
    0.0 - 11.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x30-E16 PU100
    Unit
    100
    JT3-6-5.5x35-E16 3572511361 5.5 16 35.0 0.0 - 16.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    35.0
    Clamp thickness
    0.0 - 16.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x35-E16
    Unit
    500
    JT3-6-5.5x35-E16 PU100 6572511361 5.5 16 35.0 0.0 - 16.0 Stainless Steel 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    35.0
    Clamp thickness
    0.0 - 16.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x35-E16 PU100
    Unit
    100
    JT3-6-5.5x50-E16 3592811361 5.5 16 50.0 0.0 - 31.0 Stainless Steel 250

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    50.0
    Clamp thickness
    0.0 - 31.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x50-E16
    Unit
    250
    JT3-6-5.5x50-E16 PU100 6592811361 5.5 16 50.0 0.0 - 31.0 Stainless Steel 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    50.0
    Clamp thickness
    0.0 - 31.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x50-E16 PU100
    Unit
    100
    JT3-6-5.5x70-E16 3593911361 5.5 16 70.0 22.0 - 51.0 Stainless Steel 250

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    70.0
    Clamp thickness
    22.0 - 51.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-6-5.5x70-E16
    Unit
    250
