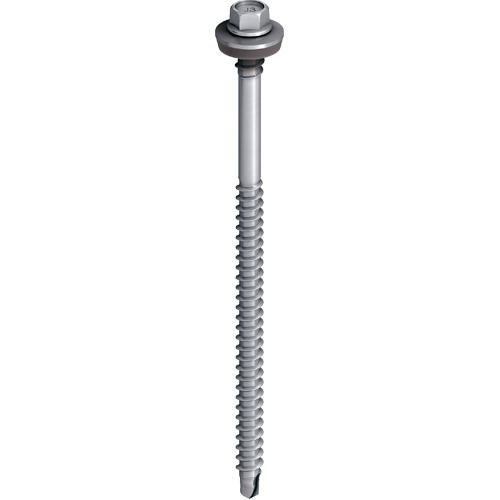

EJOT® self-drilling screw JT3-D-2H-6.5/7.0


Specification

  • Applications

    • Fastening sandwich panels to timber substructure

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under screw head
    • High thread

  • Technical specifications

    • Diameter: 6.5 mm
    • Drilling capacity tI + tII: 2.0 mm
    • Drive: Hexagon A/F8
    • Ø high thread: 7.0 mm
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT3-D-2H-6.5/7.0x100-E19 3558466351 6.5 7.0 19 100.0 16.0 - 50.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    100.0
    Clamp thickness
    16.0 - 50.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x100-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x120-E19 3558566351 6.5 7.0 19 120.0 36.0 - 70.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    120.0
    Clamp thickness
    36.0 - 70.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x120-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x140-E19 3558666351 6.5 7.0 19 140.0 56.0 - 90.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    140.0
    Clamp thickness
    56.0 - 90.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x140-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x160-E19 3558766351 6.5 7.0 19 160.0 76.0 - 110.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    160.0
    Clamp thickness
    76.0 - 110.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x160-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x180-E19 3558866351 6.5 7.0 19 180.0 96.0 - 130.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    180.0
    Clamp thickness
    96.0 - 130.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x180-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x200-E19 3558966351 6.5 7.0 19 200.0 116.0 - 150.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    200.0
    Clamp thickness
    116.0 - 150.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x200-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x220-E19 3559366351 6.5 7.0 19 220.0 136.0 - 170.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    220.0
    Clamp thickness
    136.0 - 170.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x220-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x240-E19 3559066351 6.5 7.0 19 240.0 156.0 - 190.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    240.0
    Clamp thickness
    156.0 - 190.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x240-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x260-E19 3559466351 6.5 7.0 19 260.0 176.0 - 210.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    260.0
    Clamp thickness
    176.0 - 210.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x260-E19
    Unit
    100
    JT3-D-2H-6.5/7.0x280-E19 3559166351 6.5 7.0 19 280.0 196.0 - 230.0 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Length
    280.0
    Clamp thickness
    196.0 - 230.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6.5/7.0x280-E19
    Unit
    100
