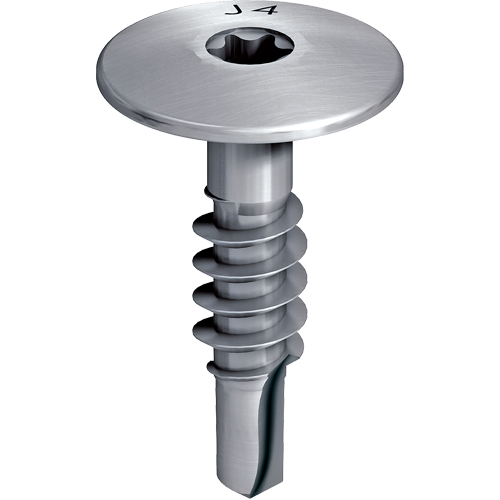

EJOT® stainless steel self-drilling screw JT4-LT-2/6-6.0x25

Specification

  • Applications

    • For fixing facade panels to 1.5-2.0 mm aluminium substructures
    • Can be combined with LT fixed and floating point sleeves

    Note

    Please note the respective approval of the facade panel and the assembly instructions of the manufacturer.

  • Properties

    • A2 stainless steel
    • Pan head

    Benefits

    • To cover slotted holes and large pre-drill diameters
    • Also available in RAL lacquering
    • Flat screw head for aesthetic facade design
    • Wobble-free fastening by using the LT tool
  • Technical specifications

    • Diameter: 6.0 mm
    • Drilling capacity (tI pre-drilled) + tII: 2.0 mm
    • Drive: Hexalobular drive T25
    • Head diameter: 16 mm
    • Head height: 2 mm
    • Length non-threaded part: 6.0 mm
Orderidentifier Article Number ø mm Length mm Fastener material Unit
JT4-LT-2/6-6.0x25 7384199300 6.0 25.0 Stainless Steel 500

Specifications

ø
6.0
Length
25.0
Fastener material
Stainless Steel
Orderidentifier
JT4-LT-2/6-6.0x25
Unit
500
