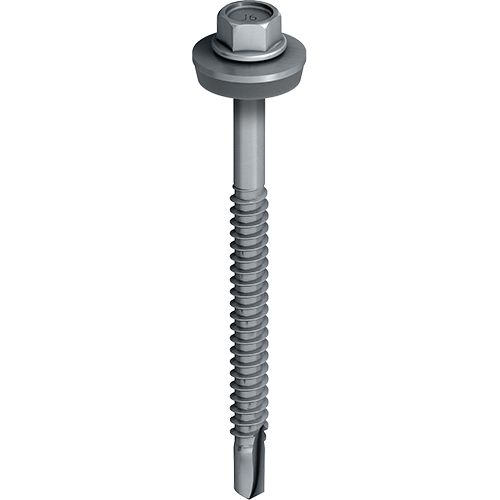

EJOT® self-drilling screw JT6-6-5.5

Hauptproduktbild

Specification

  • Applications

    • Fastening profiled steel sheets to 1.5 – 5 mm steel substructure
    • Fastening profiled aluminium sheets and sandwich panels to 1.5-5 mm steel substructure

  • Properties

    • A4 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 5.0 mm / 2.0 + 4.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm
Orderidentifier Article Number Ø Sealing Washer mm Length mm Clamp thickness mm Fastener material Unit
JT6-6-5.5x25-E16 3572281991 16 25.0 1.2 - 8.0 Stainless Steel 500

Specifications

Ø Sealing Washer mm
16
Length
25.0
Clamp thickness
1.2 - 8.0
Fastener material
Stainless Steel
Orderidentifier
JT6-6-5.5x25-E16
Unit
500
