EJOT® self-drilling screw JT9-2/5-5.0 VARIO

Specification

  • Applications

    • To form sliding and fixed points on substructures of rear-ventilated
      facades
    • Fastening pre-drilled stainless steel or aluminium wall brackets
      to aluminium support profiles
  • Properties

    • One screw for all part combinations
    • Sliding washer E14, Ø 14 mm
    • Buffer zone between the screw head and sliding disk prevents
      excessive clamp load of the joint.
      Pre-assembled captive sliding washer
    • Consistently low contact pressure prevents stick-slip phenomenon
    • No stripping / destruction of the thread in component II resulting
      in high tensile loading capacity
    • High tensile and transverse load transmission in component II
      due to fine pitch thread
    • National technical test certificate (abP) as proof of usability
      according to DIN 18516-1 (also available as informal English
      translation)
    • Case hardened drill point of the JT6 version for fastening in
      steel support profiles (not part of the abP)
    • Wall brackets made of stainless steel and aluminium are part
      of the abP
    • Buffer zone serves as visual set control
    • Same assembly concept for sliding and fixed points

    Note

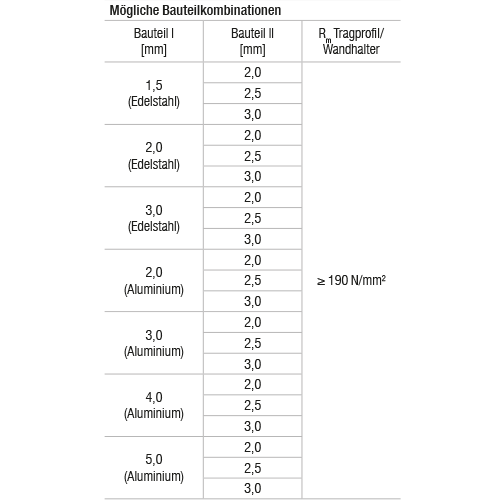

    Component assemblies checked with Rm (component II) ≥ 190,
    ≥ 215 and ≥ 245 N/mm2. For bearing values, please refer to the
    national technical test certificate (abP) P-BWU02-178006

  • Technical specifications

    • Diameter: 5.0 mm
    • Drilling capacity 3.0 mm
    • A/F8 hexagon drive
    • Assembly torque: 1500 rpm
    • Sliding washer E14, Ø 14 mm



    Notice
    Component assemblies checked with Rm (component II) ≥ 190, ≥ 215 and ≥ 245 N/mm2. For bearing values, please refer to the general building authorities test certificate (abP) P-BWU02-178006.

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Unit
    JT9-2/5-5.0x25 Vario 3500777490 5.0 25.0 500

    Specifications

    ø
    5.0
    Length
    25.0
    Orderidentifier
    JT9-2/5-5.0x25 Vario
    Unit
    500
    JT9-2/5-5.0x25 Vario VE100 6500777490 5.0 25.0 100

    Specifications

    ø
    5.0
    Length
    25.0
    Orderidentifier
    JT9-2/5-5.0x25 Vario VE100
    Unit
    100
