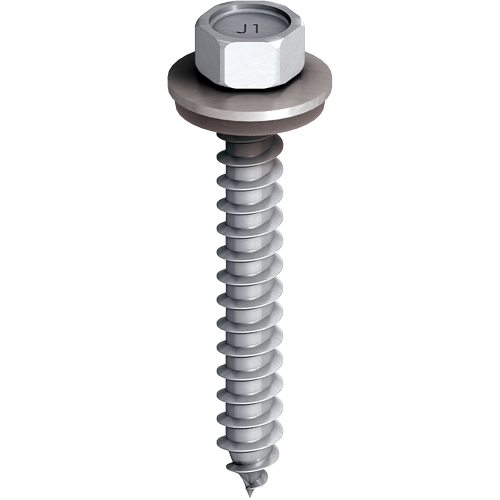

CORREMAKS® self-tapping screw JA1-6.5
Specification
-
Applications
- Side lap stitching of profiled steel sheets in highly corrosive environments
- Fastening profiled steel sheets to timber substructures in highly corrosive environments
-
Properties
- Stainless steel HCR – 1.4529
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Highest corrosion protection class
-
Technical specifications
- Diameter: 6.5 mm
- Drive: Hexagon AF 3/8"
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Ø Sealing Washer mm | Unit | |||
|---|---|---|---|---|---|---|---|
| JA1-6.5x22-E16 | 3113211319 | 6.5 | 16 | 22.0 | 0.5 - 12.0 | Stainless Steel HCR - 1.4529 | 500 |
Specifications
|
|||||||
| JA1-6.5x38-E16 | 3113411319 | 6.5 | 16 | 38.0 | 0.5 - 28.0 | Stainless Steel HCR - 1.4529 | 500 |
Specifications
|
|||||||
| JA1-6.5x64-E16 | 3113811319 | 6.5 | 16 | 64.0 | 0.5 - 54.0 | Stainless Steel HCR - 1.4529 | 250 |
Specifications
|
|||||||
| JA1-6.5x115-E16 | 3114311319 | 6.5 | 16 | 115.0 | 37.0 - 65.0 | Stainless Steel HCR - 1.4529 | 100 |
Specifications
|
|||||||
| JA1-6.5x145-E16 | 3114611319 | 6.5 | 16 | 145.0 | 70.0 - 95.0 | Stainless Steel HCR - 1.4529 | 100 |
Specifications
|
