EJOT® self-tapping screw JZ3-S-6.3

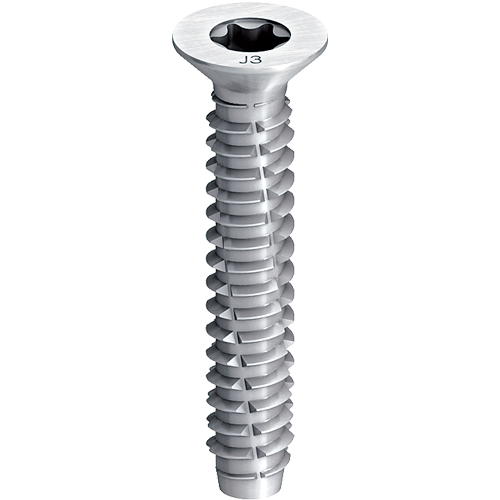

JZ3-S-6,3_foto1

Specification

  • Applications

    • For fixing metal sections, timber, treads, platforms and balcony slabs to steel or aluminium substructures

  • Properties

    • A2 stainless steel

  • Technical specifications

    • Diameter: 6.3 mm
    • Head geometry: Countersunk head
    • Drive: Hexalobular drive T30
    • Installation rotation speed: max. 400 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamp thickness mm Fastener material Unit
    JZ3-S-6.3x19 3029400311 6.3 19.0 2.0 - 13.0 Stainless Steel 500

    Specifications

    ø
    6.3
    Length
    19.0
    Clamp thickness
    2.0 - 13.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-S-6.3x19
    Unit
    500
    JZ3-S-6.3x25 3029500311 6.3 25.0 2.0 - 19.0 Stainless Steel 500

    Specifications

    ø
    6.3
    Length
    25.0
    Clamp thickness
    2.0 - 19.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-S-6.3x25
    Unit
    500
    JZ3-S-6.3x35 3121700301 6.3 35.0 2.0 - 29.0 Stainless Steel 500

    Specifications

    ø
    6.3
    Length
    35.0
    Clamp thickness
    2.0 - 29.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-S-6.3x35
    Unit
    500
    JZ3-S-6.3x64 3029600311 6.3 64.0 2.0 - 59.0 Stainless Steel 250

    Specifications

    ø
    6.3
    Length
    64.0
    Clamp thickness
    2.0 - 59.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-S-6.3x64
    Unit
    250
