EJOT CRONIMAKS® self-tapping screw JZ7-6.3

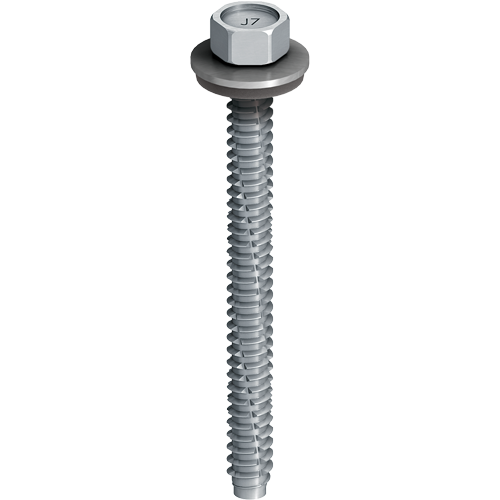

JZ7-6,3_foto2

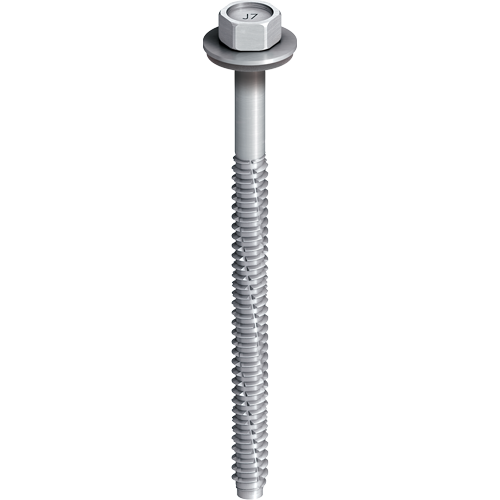

JZ7-6,3_foto1

Specification

  • Applications

    • Fastening profiled steel sheets and sandwich panels to steel substrate up to S 355 (St 52)
    • Fastening profiled steel sheets and sandwich panels to stainless steel substrate (up to Rm = 700 N/mm2)

  • Properties

    • Approved A2 stainless steel screw for high-strength steel substructures
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 6.3 mm
    • Drive: Hexagon AF 3/8"
    • Installation rotation speed: max. 400 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JZ7-6.3x22-E16/2 3290211711 6.3 16 22.0 0.0 - 15.0 500

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    22.0
    Clamp thickness
    0.0 - 15.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ7-6.3x22-E16/2
    Unit
    500
    JZ7-6.3x65-E16/2 3290611711 6.3 16 65.0 0.0 - 56.0 250

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    65.0
    Clamp thickness
    0.0 - 56.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ7-6.3x65-E16/2
    Unit
    250
    JZ7-6.3x85-E16/2 3290811711 6.3 16 85.0 23.0 - 78.0 250

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    85.0
    Clamp thickness
    23.0 - 78.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ7-6.3x85-E16/2
    Unit
    250
    JZ7-6.3x105-E16/2 3291011711 6.3 16 105.0 33.0 - 98.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    105.0
    Clamp thickness
    33.0 - 98.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ7-6.3x105-E16/2
    Unit
    100
    JZ7-6.3x125-E16/2 3291211711 6.3 16 125.0 58.0 - 118.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    125.0
    Clamp thickness
    58.0 - 118.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ7-6.3x125-E16/2
    Unit
    100
    JZ7-6.3x145-E16/2 3291411711 6.3 16 145.0 83.0 - 138.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    145.0
    Clamp thickness
    83.0 - 138.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ7-6.3x145-E16/2
    Unit
    100
    JZ7-6.3x165-E16/2 3291611711 6.3 16 165.0 98.0 - 158.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    165.0
    Clamp thickness
    98.0 - 158.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ7-6.3x165-E16/2
    Unit
    100
    JZ7-6.3x185-E16/2 3291811711 6.3 16 185.0 108.0 - 178.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    185.0
    Clamp thickness
    108.0 - 178.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ7-6.3x185-E16/2
    Unit
    100
