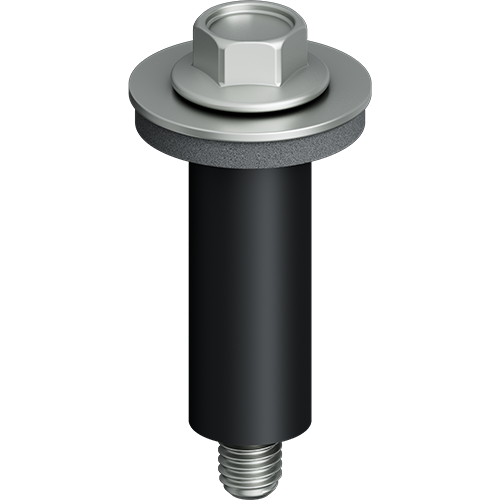

EJOT® clamping screw RLS 25
- For side lap stitching of profiled plastic sheets
- Fastening of profiled plastic sheets with other components, that don't require a load-carrying capacity verification, where variable shear forces due to temperature expansion can be expected.
Seal testing is recommended.
- A2 stainless steel screw
- Stainless steel sealing washer
- Pre-assembled sealing washer
- EPDM sealing sleeve with brass thread insert
- Diameter: 8.0 mm
- Drill hole diameter: 10.0 mm
- Self-tapping screw: M5
- Tightening torque: 1.5 Nm
- Drive: Hexagon A/F8
|Orderidentifier||Article Number||ø mm||Length mm||Fastener material||Unit|
