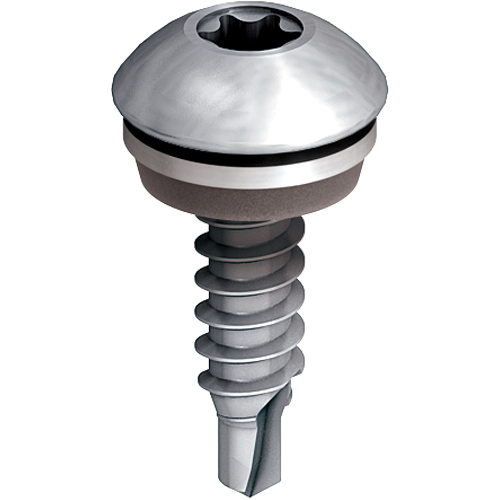

EJOT® self-drilling screw JT3-FR-2H-4.8

JT3-FR-2H-4,8

Specification

  • Applications

    • Side lap stitching of profiled steel and aluminium sheets

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under screw head for effective side lap stitching
    • With truss head

  • Technical specifications

    • Diameter: 4.8
    • Drilling capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexalobular TX25
    • Installation rotation speed: max. 1800 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JT3-FR-2H-4.8x19 E11 3591968358 4.8 11 19.0 2.0 - 4.0 100

Specifications

ø
4.8
Ø Sealing Washer mm
11
Length
19.0
Clamp thickness
2.0 - 4.0
Fastener material
Stainless Steel
Orderidentifier
JT3-FR-2H-4.8x19 E11
Unit
100
