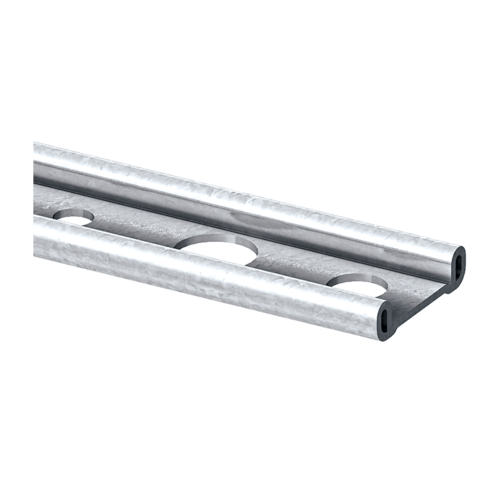

EJOT® Flat roof profile FP

Specification

  • Applications

    • To fix roofing membrane to substructures made of concrete, aerated concrete, steel, aluminium trapezoidal profile, timber and wood-based materials
    • For structural fastening of the edges

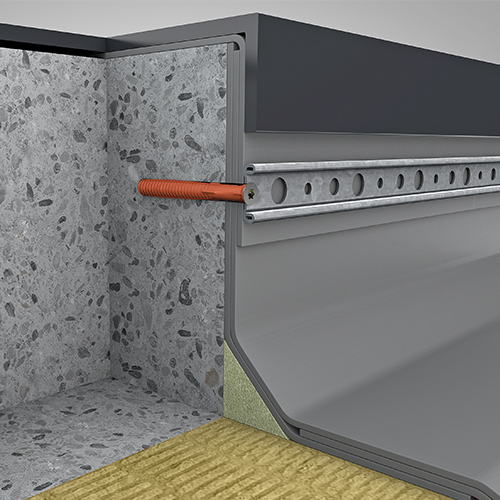

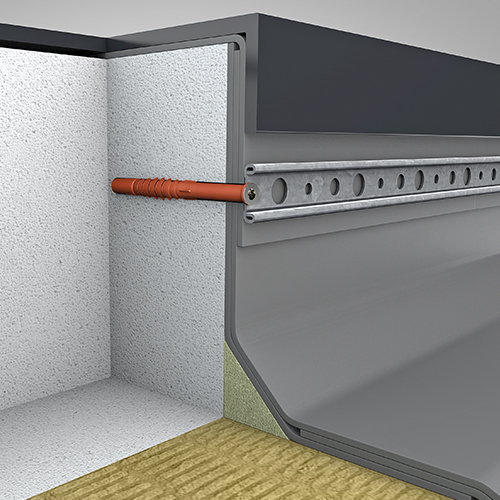

    • For fastening the edges of roofing membrane on wall connections and roof edges
  • Properties

    • Alu-zinc-coated steel
    • Metal rail fastening system
    • Easy processing
    • Low weight
    • 3 different hole diameters combined in one profile
    • Total length 2.25 m
    • Flexible areas of application

    Notice

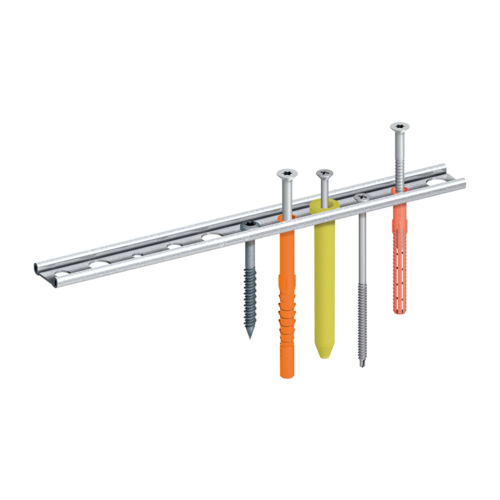

    For combination with EJOT Dabo® screws, concrete and aerated concrete screws and self-drilling screws.

    For combination with EJOT facade anchors according to ETA-10/0305.

  • Technical specifications

    • Length: 2.25 m
    • Width: 30 mm
    • Height incl. fold edge: 7.5 mm
    • Thickness: 1.5 mm
    • Hole diameter
      - for stress plates HTK-S: 14.5 mm
      - for facade anchors: 10.5 mm
      - for screws: 7.0 mm
Orderidentifier Article Number Length mm Width mm Unit
Flat roof profile FP 7999001886 2250.0 30.0 27

Specifications

Length
2250.0
Width
30.0
Orderidentifier
Flat roof profile FP
Unit
27
