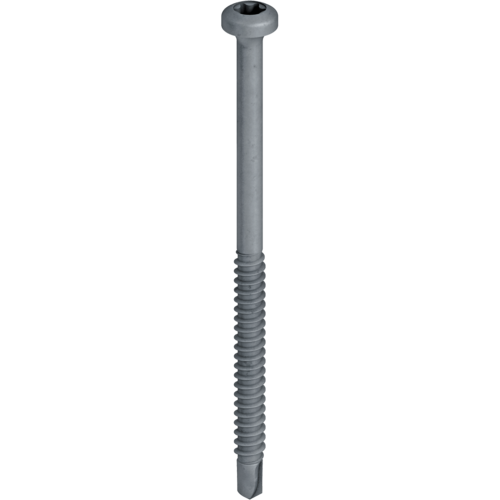

EJOT Dabo® screw TKR-ZT6-5.5
Specification
-
Applications
- To fix roofing membrane to substructures made of sheet steel ≥ 3.0 mm ≤ 6.0mm mm
- For combination with EJOT® stress plates
-
Properties
- Case-hardened steel
- Climadur coated – high-quality coating to improve corrosion protection (15 Runden Kesternich, DIN 50018, 1997)
-
Technical specifications
- Diameter: 5.5 mm
- Drilling capacity: 6.0 mm
- Drive: Hexalobular drive T30
Length determination (min. lengths)
- Sheet steel: Insulation thickness + 20 mm
- Timber: Insulation thickness + 30 mm
Bitte beachten Sie: Fertigungsartikel sind keine dauerhaft lagernde Ware. Für individuelle Lieferzeiten, Preise sowie Verfügbarkeiten sprechen Sie uns bitte an.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Unit |
|---|---|---|---|
| DABO TKR-ZT6-5.5x35 | 3495035629 | 35.0 | 500 |
Specifications
|
|||
| DABO TKR-ZT6-5.5x70 | 3495070629 | 70.0 | 500 |
Specifications
|
|||
| DABO TKR-ZT6-5.5x90 | 3495090629 | 90.0 | 500 |
Specifications
|
|||
| DABO TKR-ZT6-5.5x110 | 3495110629 | 110.0 | 250 |
Specifications
|
